T-BAT HS 10.0 + X3-Hybrid 6.0 D G4.2
Product information "T-BAT HS 10.0 + X3-Hybrid 6.0 D G4.2"
ATTENTION:
UN 3480 lithium-ion batteries, 9, (E)
Transport category 2

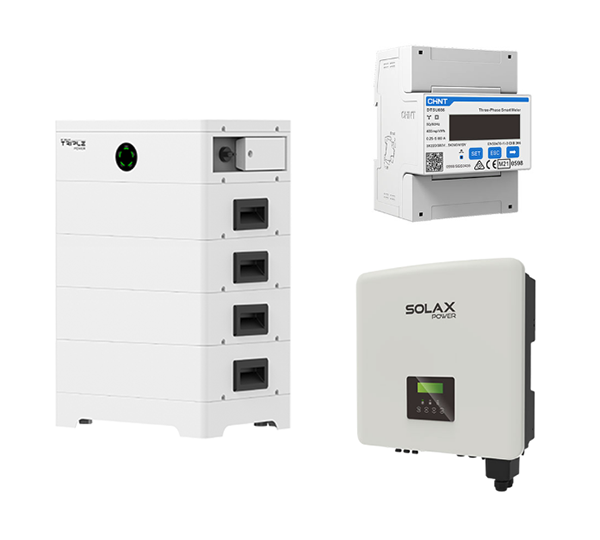

In this storage package we combine the proven X3 hybrids from Solax with performance classes from 5 to 15 kW and the new HV-S 2.5 storage series. This can be cascaded per tower with up to 13 storage modules to a usable 29.9 kWh. Fast, wireless stacking design with no time limit for expansion creates the best conditions and maximum flexibility. Also ideal for special applications as a true off-grid system with a generator connection.
Product advantages:
• Secure compatibility thanks to a uniform manufacturer
• Emergency power with UPS function < 10ms
• High input current per MPPT
• Up to 10 systems can be cascaded
• Proven, ultra-flat stacking design
• Cascadable up to 13 battery modules
• Updates and diagnostics via the inverter

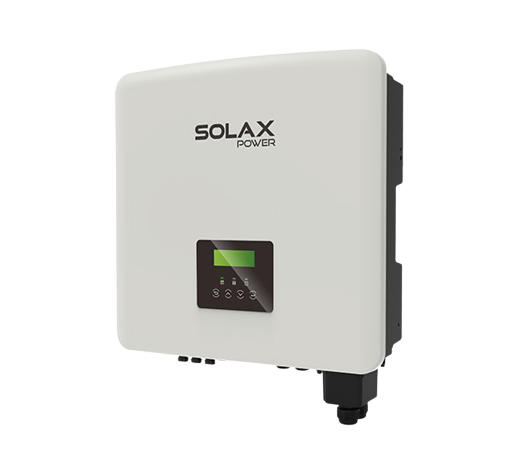

Product features system:
• AC power: 6.0 kW
• Number of MPPT: 2
• DC input current: 16A per MPPT
• AC connection: 3-phase
• Communication: Wifi, LAN (opt.), RS485
• Protection class: IP65
• Cooling: passive
• Dimensions: 503 x 503 x 199 mm (W x H x D)
• Weight: 30.0 kg
Product features memory:
• Battery capacity (usable): 9.2 kWh
• Time window extension: unlimited
• Cascadable: 2 to 13 battery modules (9 units or more become Solax Series
box required)
• Cell chemistry: LFP
• Rated voltage: 204.8V
• Protection class: IP65
• Dimensions: 773 x 510 x 365 mm (HxWxD)
• Weight: Battery 28.0 kg each, BMS 10.0 kg
Conclusion:
With a wide range of performance and new, super-flexible memory sizes, there is the right package for every application.
Downloads
-
3-PHASE COMPENSATION METER DTSU666-D CHINT8228464
-
MASTER BOX MCS08008255372
-
X3-HYBRID-6.0-D G4.28251785
-
T-BAT-SYS-HV-S2.58255103
Technical details
| Topology | transformerless |
|---|---|
| Max. short circuit current per MPPT (A) | 20 |
| Max. generator power DC (kWp) | 12.00 |
| Max. input current per MPPT (A). | 16 |
| Protection degree | IP65 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| Display | with display |
| Max. short circuit current (A) total | 40.00 |
| Total number of string inputs | 2 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 32.00 |
| Commercial system | no |
| Max. AC power (kVA) | 6.60 |
| MPP max. voltage range input (V) | 950.00 |
| Max. nominal charging power (kW) | 6.10 |
| Battery voltage | High Voltage |
| Max. efficiency (%) | 98.00 |
| MPP min. voltage range input (V) | 180.00 |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 9.20 |
| Max. discharging power (kW) | 6.10 |
| Max. output current (A) | 9.70 |
| Amount connected phases | 3 |
| AC nominal power (kW) | 6.00 |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | China |
|---|---|
| Hazardous goods transportation category | 2 |
| Manufacturer | SolaX Power |
| Manufacturer item name | T-BAT-SYS-HV-S2.5*MCS0800*X3-HYBRID-6.0-D |
| Hazardous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Hazardous goods class | 9 |
| Hazardous goods Weight (net) (kg) | 70.400 |
| Hazardous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 187.460 |
|---|
| Weight without packaging (kg) | 152.710 |
|---|
| Warranty provider | SolaX Power |
|---|
