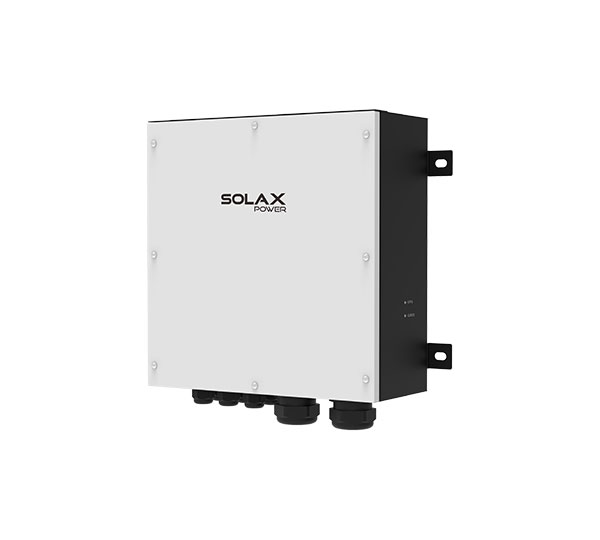

X3-EPS-Parallel Box 60kW G2
Combinerbox for up to 6x X1-/X3-Hybrid
Art. no.
8252154
Manufacturer No.
1060090005
Product details
Product information "X3-EPS-Parallel Box 60kW G2"
With the new X3-EPS-Parallel Box G2, the backup connections of up to 6 hybrid inverters with a total power of maximum 60 kW can be interconnected. The box can be used for all device generations from G2, G3, G4 up to the current G4.2. By synchronizing the EPS outputs, backup power situations with larger loads and PV system are also possible.
Product advantages:
- Enables backup power applications on a larger scale
- Separate connection of backup and no-backup loads
Product features:
- 3-phase mains connection
- Max. Rated current: 87 A
- Max. Power WR: 60 kW
- Switching time: <10s
- Protection class: IP65
Technical details
| Min. temperature ambient (°C) | -25 |
|---|---|
| Protection degree | IP65 |
| Max. input current per string (A) | 87.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolaX Power |
| Intrastat product number (HS-code) | 85363010 |
| Manufacturer item name | X3-PBOX-150kW-G2 |
| Length incl. packaging (cm) | 59.50 |
|---|---|
| Pack. material | cardboard box |
| Pal. dim. LxBxH (mm) | 1800x1100x1200 |
| Weight incl. packaging (Kg) | 21.000 |
| Width incl. packaging (cm) | 53.60 |
| Height incl. packaging (cm) | 24.70 |
| Height without packaging (mm) | 478.00 |
|---|---|
| Width without packaging (mm) | 492.00 |
| Weight without packaging (kg) | 17.000 |
| Length without packaging (mm) | 183.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | SolaX Power |
