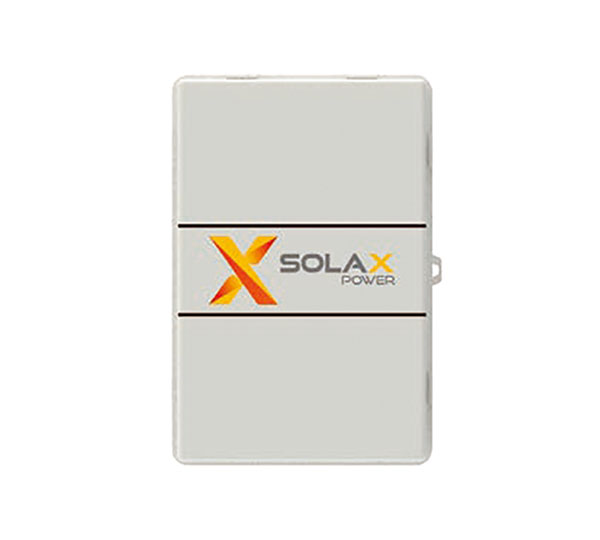

X3-EPS BOX (ONLY DE/BE/NL/SWE)
3-phase backup power box with changeover
Art. no.
8211032
Manufacturer No.
1060090001
Product details
Product information "X3-EPS BOX (ONLY DE/BE/NL/SWE)"
***coordination with network operator is required whether the device can be used with all-pole separation!***
- can be used for the X3 hybrid inverters
- Eaton DILM 40C (220-230 50Hz)
- max. EPS input current (A): 3*63
- max. AC input current (A): 3*63
- max. output current (A) @On Grid: 3*63
- max. output current (A) @EPS mode: 3*63
- rated grid voltage (V): 3/N/PE~400/380
- rated grid frequency (Hz): 50/60
- operating temperature range (°C): -20~+60
- electrical life (times): 1.2*10 6
- maximum power of controllable loads (kW): 15
- switching time will be shortened to 0.5 sec
Technical details
| Protection degree | IP65 |
|---|---|
| Nominal current (A) | 63.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolaX Power |
| Manufacturer item name | X3 EPS BOX |
| Intrastat product number (HS-code) | 85371098 |
| Pal. dim. LxBxH (mm) | 1000x1200x2200 |
|---|---|
| Weight incl. packaging (Kg) | 6.150 |
| Height incl. packaging (cm) | 28.00 |
| Pack. material | cardboard box |
| Amount per Pallet | 56 |
| Length incl. packaging (cm) | 44.00 |
| Width incl. packaging (cm) | 29.20 |
| Length without packaging (mm) | 300.00 |
|---|---|
| Weight without packaging (kg) | 4.850 |
| Width without packaging (mm) | 220.00 |
| Height without packaging (mm) | 170.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | SolaX Power |
