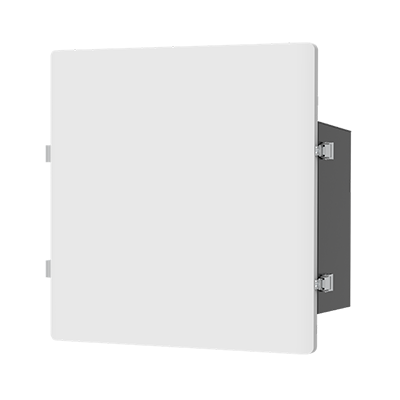

X3-Matebox Advanced, 3-phase switching device
Product information "X3-Matebox Advanced, 3-phase switching device"
Note:
The Solax Smart Meter DTSU666-D is already installed in this box.
When selecting with a storage package, please note and use individual items.
With the X1 / X3 Matebox, Solax takes the final step towards the highest level of backup power supply - automatic switching of the entire house connection. The box can be placed directly between the inverter and T3.0 batteries in a visually appealing way. This creates the classic tower, which contains all the major system components. The designation as an energy center is quite justified. And if more storage capacity is desired, the T5.8 series with the X3-Matebox can also be used as an alternative.
Product advantages:
• Automatic switchover in the event of a power failure
• Complete switchover of the entire house connection possible
• Visually appealing housing for direct attachment to the inverter
• Can be set up as a tower with T3.0 batteries
• Compatible with D-Series hybrid WRs – therefore retrofittable
• Already includes the Solax Smart Meter DTSU-666-D
Product features:
• AC grid: 3-phase
• House connection nominal current max.: 63 A
• Rated current WR max.: 24.1 A (max. X3-Hybrid 15.0-D)
• Cooling: convection (fanless)
• Dimensions: 551 x 512 x 204mm
• Protection class: IP54
• Weight: 13.5 kg
Technical details
| Nominal current (A) | 63.00 |
|---|---|
| Protection degree | IP54 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolaX Power |
| Manufacturer item name | X3-MATEBOX ADVANCED |
| Intrastat product number (HS-code) | 85049090 |
| Height incl. packaging (cm) | 32.50 |
|---|---|
| Pack. material | cardboard box |
| Pal. dim. LxBxH (mm) | 1140x630x2300 |
| Weight incl. packaging (Kg) | 16.500 |
| Amount per Pallet | 14 |
| Width incl. packaging (cm) | 56.00 |
| Length incl. packaging (cm) | 62.50 |
| Weight without packaging (kg) | 13.500 |
|---|---|
| Height without packaging (mm) | 204.00 |
| Length without packaging (mm) | 551.00 |
| Width without packaging (mm) | 512.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | SolaX Power |
