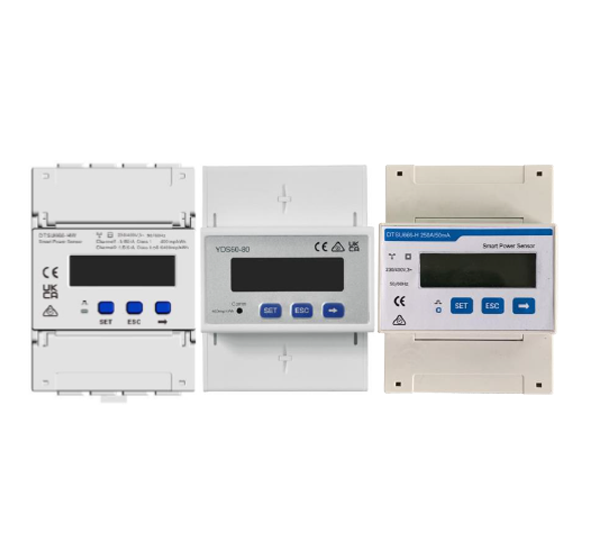

Smart Power Sensor SmartPS-80AI-T0
3-ph, direct measurement up to 80A, ind. with CTs
Art-No.
0158625
Manufacturer No.
20023002
Product details
Product information "Smart Power Sensor SmartPS-80AI-T0"
Suitable instrument transformers with 1 / 5 ampere secondary current must be added separately.
The SmartPS-80AI-T0 is the universally applicable smart power sensor from Huawei. Direct measurement is possible up to 80 amps. For higher currents, external measuring transformers with 1 / 5 ampere secondary current can be used. Thanks to accuracy class 1 and low power consumption, it is also ideal for larger systems.
Product features:
- Mains connection: 400 V
- Connection phases: 3-phase
- Measurement: direct up to 80A, indirect via external CTs (to be ordered separately)
- Communication: RS485
- Mounting: Top-hat rail
- Dimensions: 100 x 72 x 80 mm (H x W x D)
Translated with DeepL.com (free version)
Technical details
| Max. input current (A) total | 80.00 |
|---|---|
| Type of AC measurement | direct |
| Mounting type | DIN rail |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | SMART POWER SENSOR 80AI-T0 |
| Manufacturer | Huawei |
| Intrastat product number (HS-code) | 85049090 |
| Pack. material | cardboard box |
|---|---|
| Amount per Pallet | 144 |
| Weight incl. packaging (Kg) | 1.000 |
| Height without packaging (mm) | 80.00 |
|---|---|
| Weight without packaging (kg) | 0.990 |
| Width without packaging (mm) | 72.00 |
| Length without packaging (mm) | 100.00 |
| Standard product warranty (yr) | 2 |
|---|---|
| Product warranty (yr) | 2 |
| Warranty provider | Huawei |
