JAM66D45-635/LB (SU 36)
Product information "JAM66D45-635/LB (SU 36)"

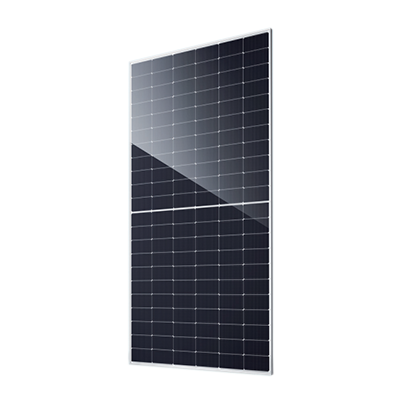

JA Solar is a leading global provider of photovoltaic power generation solutions. JA Solar's JAM66D45 LB solar module with an output of 635 Wp is equipped with bifacial technology, which enables power generation on both sides. This technology increases yield and improves energy efficiency by utilising both the front and back sides of the PV module. In addition, the module has improved low-light performance, ensuring very good performance even at low irradiation. JA Solar offers a 30-year performance warranty for this product.
Product advantages:
• Bifacial power generation
• Improved low-light performance
• 30 years performance warranty
Product features:
• Power rating Pmax: 635 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame type: framed
• Frame colour: silver
• Backsheet colour (cell side): white
• Max. system voltage: 1500 V
• Connector type: MC4 Evo 2A
• Cable length: 1.4 m
• Glass thickness: 2.0 mm (front) / 2.0 mm (back)
• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire protection class: UL type 29 / Class C
• Dimensions: 2382 x 1134 x 30 mm
• Weight: 32.80 kg
• Warranty: 30 years performance warranty and 12 years product warranty
Technical details
| Number of cells (pieces) | 132 |
|---|---|
| Bifacial | yes |
| Busbars (pcs) | 16 |
| Backsheet colour cell side | white |
| Protection degree | IP68 |
| Glass thickness front side (mm) | 2.00 |
| Integrated module optimization | no |
| Cable core cross section (mm²) | 4.00 |
| Length of cable minus (cm) | 140.00 |
| Length of cable plus (cm) | 140.00 |
| Short circuit current Isc (A) | 16.21 |
| Open circuit voltage Uoc (V) | 49.10 |
| Power tolerance | + 3% |
| Max. surface load capacity testload(Pa) | 5400 |
| Max. reverse current (A) | 35 |
| Max. system voltage (V) | 1500 |
| Max. wind speed capacity testload(Pa) | 2400 |
| Module structure | glass-glass |
| Module efficiency (%) | 23.50 |
| Power rating Pmax (Wp) | 635 |
| Nominal current Impp (A) | 15.51 |
| Frame colour | silver |
| Frame type | framed |
| Connector type | MC4 Evo 2A |
| Temperature coefficient Isc (%/C) | 0.0450 |
| Temperature coefficient Pmpp (%/C) | -0.2800 |
| Temperature coefficient Uoc (%/C) | -0.2500 |
| Cell width (mm) | 210.000 |
| Cell cut | half cut |
| Cell length (mm) | 182.000 |
| Cell type | monocrystalline |
| Manufacturer | JA Solar |
|---|---|
| Manufacturer item name | JAM66D45-635/LB |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85414300 |
| Length incl. packaging (cm) | 238.20 |
|---|---|
| Width incl. packaging (cm) | 113.40 |
| Height incl. packaging (cm) | 3.00 |
| Weight incl. packaging (Kg) | 32.800 |
| Amount per Pallet | 36 |
| Amount Pal. p. Cont. | 18 |
| Amount p. Cont. | 648 |
| Pal. weight (kg) | 1255.00 |
| Pal. dim. LxBxH (mm) | 2400x1150x1250 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 2382.00 |
|---|---|
| Width without packaging (mm) | 1134.00 |
| Height without packaging (mm) | 30.00 |
| Weight without packaging (kg) | 32.800 |
| Warranty provider | JA Solar |
|---|---|
| Performance warranty (yr) | 30 |
| Linear degression p.a. in % | 0,4 |
| Product warranty (yr) | 12 |
| Initial % for linear warranty | 99 |
