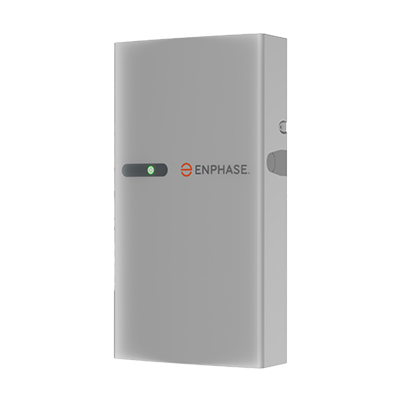

IQ Battery 5P-3P-INT, Flex Phase
Art-No.
1757209
Manufacturer No.
IQBATTERY-5P-3P-INT
Product details
Product information "IQ Battery 5P-3P-INT, Flex Phase"
Technical details
| AC nominal power (kW) | 3.84 |
|---|---|
| Feed-in phases | 3 |
| Backup system full | yes |
| Protection degree | IP55 |
| Max. output current (A) | 32.00 |
| Max. nominal charging power (kW) | 5.00 |
| Min. temperature ambient (°C) | -20 |
| Offgrid usable | yes |
| Usable capacity (kWh) | 5.00 |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 69.500 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Manufacturer | Enphase |
| Manufacturer item name | IQ BATTERY-5P-3P-INT |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85076000 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Length incl. packaging (cm) | 32.00 |
|---|---|
| Width incl. packaging (cm) | 66.00 |
| Height incl. packaging (cm) | 108.00 |
| Weight incl. packaging (Kg) | 78.900 |
| Amount per big Box | 1 |
| Pal. dim. LxBxH (mm) | 1360x1100x1100 |
| Length without packaging (mm) | 980.00 |
|---|---|
| Width without packaging (mm) | 550.00 |
| Height without packaging (mm) | 188.00 |
| Weight without packaging (kg) | 69.500 |
