E2BA-B10K3
Complete battery, 10.36 kWh
Art-No.
1765494
Product details
Product information "E2BA-B10K3"

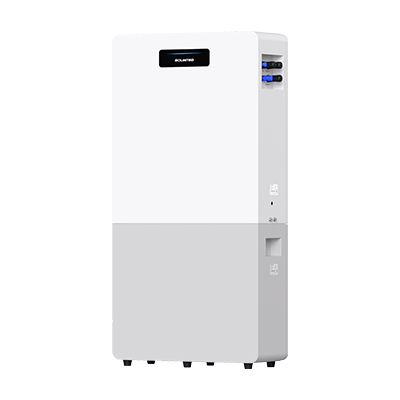

The Solinteg E2BA-B10K3 is a modern high-voltage battery storage system for residential PV systems that combines high performance, maximum safety, and easy installation. Thanks to its use of LiFePO₄ (LFP) cells, it offers a long service life, high operational safety, and reliable operation even under demanding conditions.
The battery has a capacity of 10.36 kWh, a 90% depth of discharge (DoD), and supports 1C charging and discharging, enabling a high power output of up to 10.36 kW. It is ideal for storing surplus solar energy, providing backup power for the home during grid outages, and optimizing energy consumption.
Its unique split design, consisting of two modules, significantly simplifies handling and installation. The system can be installed on the floor or mounted on a wall, and thanks to integrated quick-connectors, commissioning is fast and easy. A key advantage is the ability to expand capacity up to 20.72 kWh by connecting two battery units in parallel without the need for an external combiner box. The battery is equipped with intelligent cell heating, which enables reliable charging even at low temperatures down to -20 °C, and an IP65 rating, making it suitable for both indoor and outdoor installations.
Downloads
-
E2BA-B10K3 PACK A1765491
-
E2BA-B10K3 PACK B1765493
-
E2BA-B10K3 PACK A1765491
-
E2BA-B10K3 PACK B1765493
Technical details
| Protection degree | IP65 |
|---|---|
| Max. output current discharging (A) | 30.00 |
| Max. output current charging (A) | 30.00 |
| Max. C-rate | 1.00 |
| Min. temperature ambient (°C) | -30 |
| Nominal voltage DC (V) | 345.60 |
| Usable capacity (kWh) | 9.32 |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 102.000 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Manufacturer | Solinteg |
| Manufacturer item name | E2BA-B10K3 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85079090 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Weight incl. packaging (Kg) | 116.800 |
|---|---|
| Amount per Pallet | 1 |
| Pal. weight (kg) | 140.00 |
| Pal. dim. LxBxH (mm) | 1400x800x447 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 226.00 |
|---|---|
| Width without packaging (mm) | 543.00 |
| Height without packaging (mm) | 1211.00 |
| Weight without packaging (kg) | 102.000 |
