T-BAT HS50E 20.4 KWH + X3-IES-15K
Set
HV storage system, 18.4 kWh usable, 3-phase
Art-No.
0163149
Product details
Product information "T-BAT HS50E 20.4 KWH + X3-IES-15K"
The X3-IES series is the 3-phase version of the Solax all-in-one home energy storage system. Here, the inverter, BMS, and batteries form a compact unit. An input current of up to 32 amps allows the use of all common high-performance modules. The integrated EPS backup connection ensures uninterrupted and safe operation of selected appliances even during a power outage. Up to 6 storage modules with a total usable capacity of 27.6 kWh can be connected. Expansion is possible at any time. For configurations with more than 3 storage modules, the Solax Series Box HS50E is used to create a 2-tower system.
Product advantages:
• Secure compatibility thanks to a single manufacturer
• Emergency power with UPS function < 10ms
• High input current per MPPT
• Proven, ultra-flat stackable design
• Cascadable up to 6 battery modules
System specifications:
• AC rated power: 15.0 kW
• Power supply phases: 3
• AC mains voltage: 400 V
• Number of MPPTs: 2
• Max. DC input voltage: 1000 V
• DC surge protection: Type 2
• AC surge protection: Type 2
• AFCI arc fault detection: Yes
• Storage type: High voltage
• Backup power: Yes, via EPS connection
• Interfaces: RS485, CAN, 4 x DI, 2 x DO, WLAN, LAN
• Protection class: IP66
• Cooling: Passive
• Dimensions: 405 x 717 x 210 mm (H x W x D)
• Weight: approx. 37.0 kg
• Scope of delivery: 3 x CT and WLAN/LAN dongle
Product specifications:
• Battery capacity (usable): 18.4 kWh
• Storage type: High voltage
• Expansion timeframe: Unlimited
• Number of storage modules in one unit: 2 to 6
(From the 3rd storage unit onwards, to be configured in two towers using the Series Box)
• Cell chemistry: LFP
• Communication: RS485
• Cooling: Passive
• Protection class: IP66
• Dimensions (incl. BMS + inverter): 1281 + 809 x 730 x 150 mm (H x W x D)
• Weight: 144.2 + 100.5 kg
Scope of delivery:

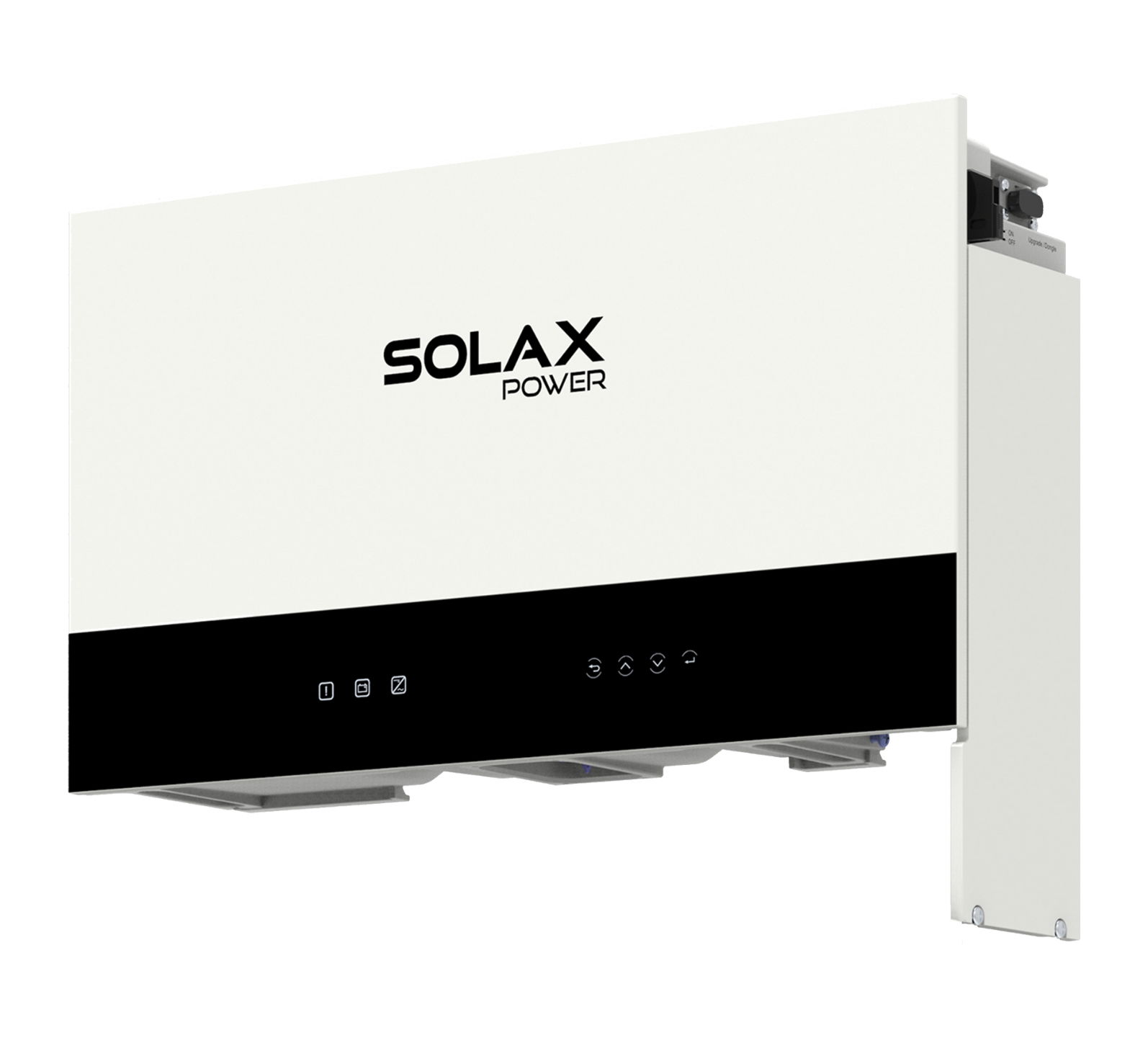

• 1 x Solax X3-IES-15K (Item 0156166)
• 1 x Solax MCS0800E BMS + Base (Item 0159750)
• 4 x Solax HS50E 5.1 Storage module (item 0159749)
• 1 x Solax Smart Meter DTSU666-D (item 0128464)

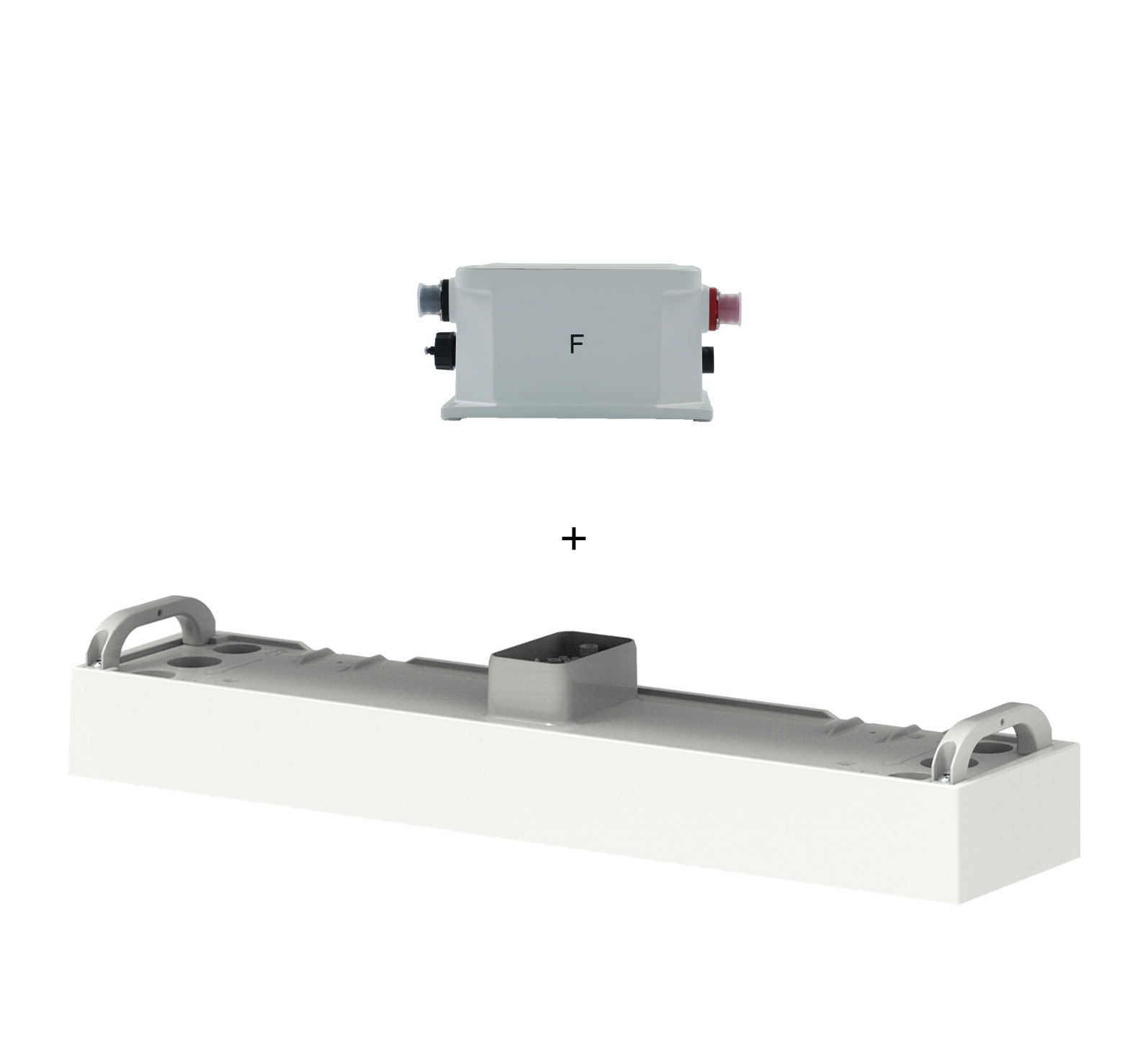

• 1 x Solax Series Box HS50E (item 0159751)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 184.000 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
DTSU666-D Smart Meter0128464
-
Master Box MCS0800E + Base0159750
-
Series Box HS50E + Base0159751
-
T-BAT SYS HS50E0159749
-
X3-IES-15K (SPD TYPE II/AFCI)0156166
-
DTSU666-D Smart Meter0128464
-
X3-IES-15K (SPD TYPE II/AFCI)0156166
Technical details
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 30.00 |
| Max. output current (A) | 24.00 |
| Max. input current DC (A) total | 52.00 |
| Usable capacity (kWh) | 18.40 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Display | with display |
| Start input voltage (V) | 140 |
| Max. short circuit current per MPPT (A) | 40\/25 |
| Max. input voltage DC (V) | 1000.00 |
| Commercial system | no |
| Surge protection AC | type 2 |
| Max. input current per MPPT (A). | 32\/20 |
| MPP max. voltage range input (V) | 950.00 |
| Max. efficiency (%) | 98.00 |
| Battery cell chemistry | LFP |
| MPP min. voltage range input (V) | 110.00 |
| Total number of string inputs | 3 |
| Surge protection DC | type 2 |
| AC nominal power (kW) | 15.00 |
| Arc Fault Circuit Interrupter | yes |
| Max. short circuit current (A) total | 65.00 |
| Max. AC power (kVA) | 16.50 |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Manufacturer | SolaX Power |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 184.000 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer item name | HS50E*TBMS-MCS0800E*X3-IES-15K |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 282.810 |
|---|
| Weight without packaging (kg) | 236.310 |
|---|
