T-BAT HS50E 15.3 KWH + X3-IES-10K
Set
HV storage system, 13.8 kWh usable, 3-phase
Art-No.
0161002
Product details
Product information "T-BAT HS50E 15.3 KWH + X3-IES-10K"
The X3-IES series is the 3-phase version of the Solax all-in-one home storage system. It combines the inverter, BMS, and batteries into a single compact unit. Input currents of up to 32 amps allow the use of all common high-performance modules. The integrated EPS backup connection allows selected loads to operate safely and without interruption, even in the event of a power failure. Up to 6 storage modules with a total usable capacity of 27.6 kWh can be connected. Expansion is possible at any time. For systems with more than 3 storage modules, the Solax Series Box HS50E must be used to configure the system in 2 towers.
Product advantages:
• Reliable compatibility thanks to a single manufacturer
• Emergency power with UPS function < 10 ms
• High input current per MPPT
• Proven, ultra-flat stacking design
• Cascadable with up to 6 battery modules
System product features:
• AC nominal power: 10.0 kW
• Feed-in phases: 3
• AC mains voltage: 400 V
• Number of MPPTs: 2
• Max. DC input voltage: 1000 V
• DC surge protection: Type 2
• AC surge protection: Type 2
• AFCI arc detection: yes
• Storage type: high voltage
• Backup power: yes, via EPS connection
• Interfaces: RS485, CAN, 4 x DI, 2 x DO, WLAN, LAN
• Protection class: IP66
• Cooling: passive
• Dimensions: 405 x 717 x 210 mm (H x W x D)
• Weight: Approx. 37.0 kg
• Scope of delivery: 3 x CT and WLAN/LAN dongle
Storage product features:
• Battery capacity (usable): 13.8 kWh
• Storage type: High-voltage
• Expansion time window: Unlimited
• Number of storage modules in one unit: 2 to 6
(from the 3rd storage unit onwards, two towers can be set up with the Series Box)
• Cell chemistry: LFP
• Communication: RS485
• Cooling: Passive
• Protection class: IP66
• Dimensions (incl. BMS + inverter): 1599 x 730 x 150 mm (H x W x D)
• Weight: 191.2 kg
Scope of delivery:

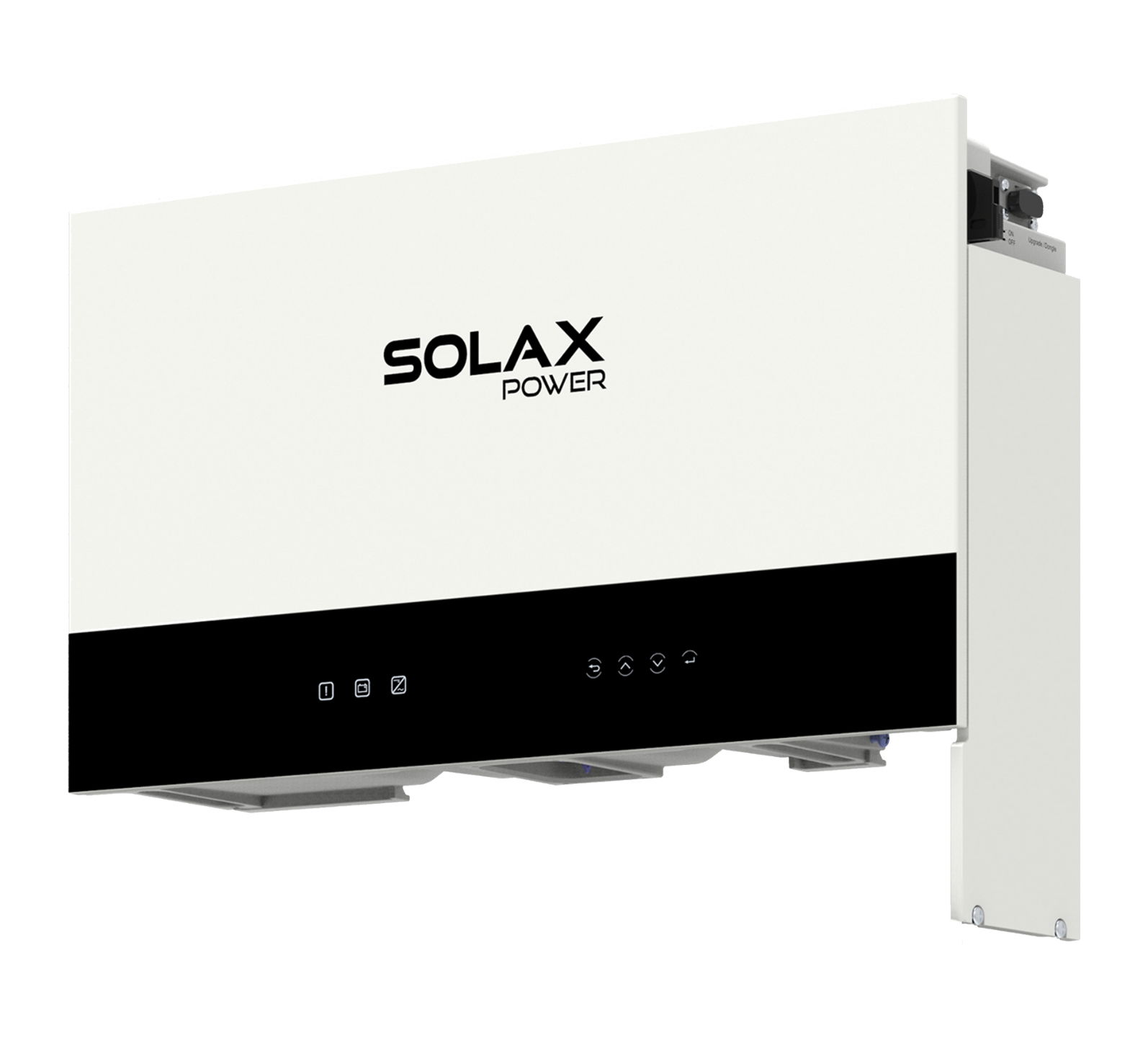

• 1 x Solax X3-IES-10K (item 0156164)

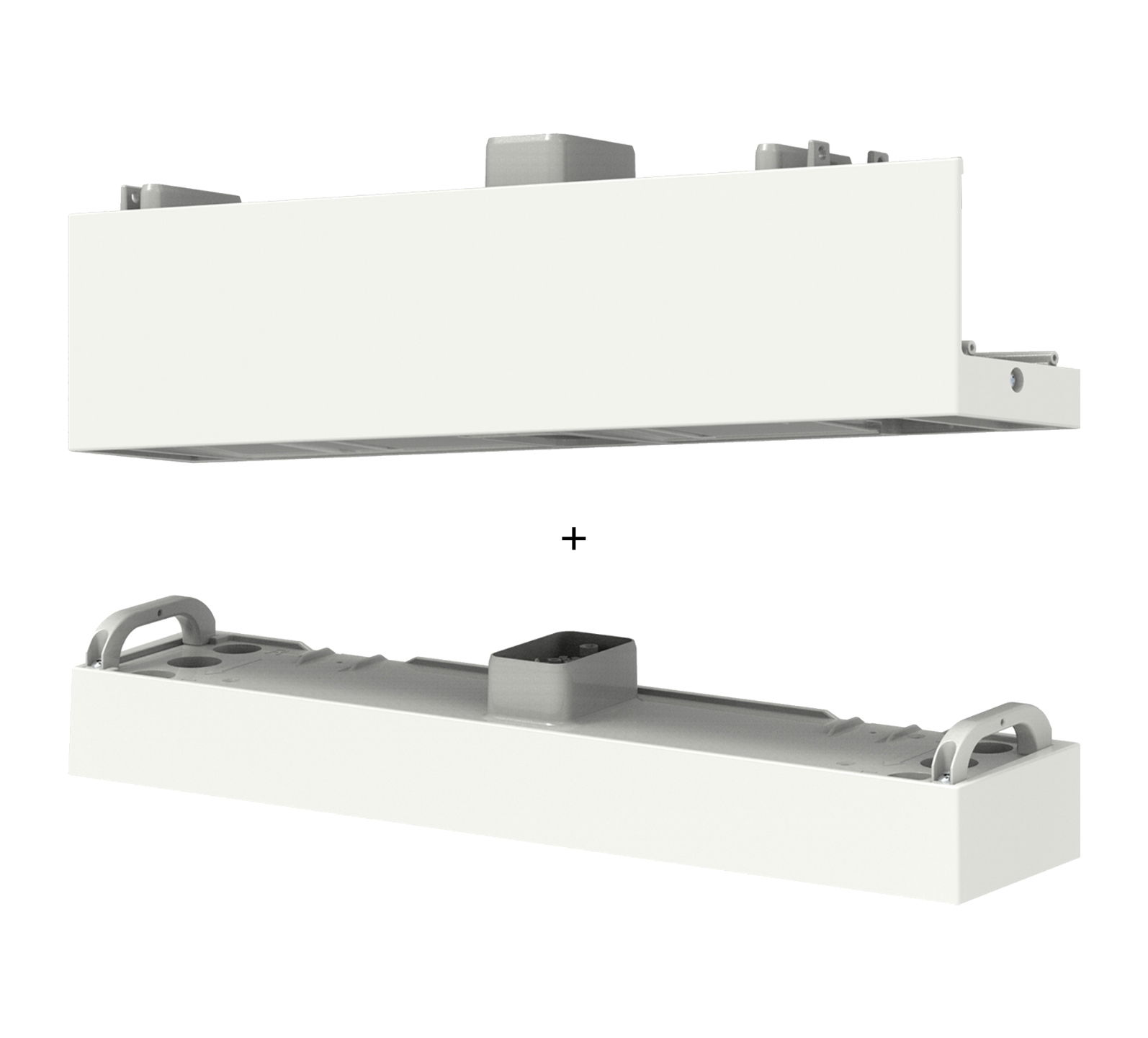

• 1 x Solax MCS0800E BMS + base (item 0159750)

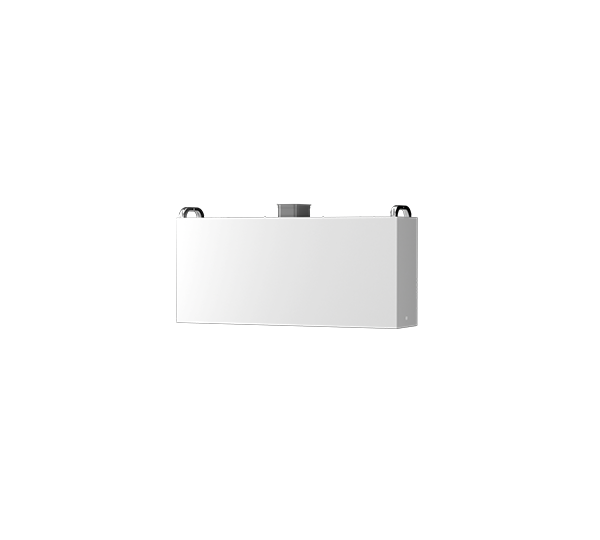

• 3 x Solax HS50E 5.1 storage module (item 0159749)
• 1 x Solax Smart Meter DTSU666-D (Item 0128464)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 138.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
DTSU666-D Smart Meter0128464
-
X3-IES-10K (SPD TYPE II/AFCI)0156164
-
Master Box MCS0800E + Base0159750
-
T-BAT SYS HS50E0159749
-
DTSU666-D Smart Meter0128464
-
X3-IES-10K (SPD TYPE II/AFCI)0156164
Technical details
| Max. output current (A) | 14.50 |
|---|---|
| Topology | transformerless |
| Max. input current DC (A) total | 52.00 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| AC nominal power (kW) | 10.00 |
| Display | with display |
| Start input voltage (V) | 140 |
| Max. short circuit current per MPPT (A) | 40\/25 |
| Max. input voltage DC (V) | 1000.00 |
| Commercial system | no |
| Surge protection AC | type 2 |
| Max. AC power (kVA) | 10.00 |
| Max. input current per MPPT (A). | 32\/20 |
| MPP max. voltage range input (V) | 950.00 |
| Usable capacity (kWh) | 13.80 |
| Max. efficiency (%) | 98.00 |
| Battery cell chemistry | LFP |
| Max. generator power DC (kWp) | 20.00 |
| MPP min. voltage range input (V) | 110.00 |
| Total number of string inputs | 3 |
| Surge protection DC | type 2 |
| Arc Fault Circuit Interrupter | yes |
| Max. short circuit current (A) total | 65.00 |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Manufacturer | SolaX Power |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer item name | HS50E*TBMS-MCS0800E*X3-IES-10K |
| Dangerous goods Weight (net) (kg) | 138.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 218.110 |
|---|
| Weight without packaging (kg) | 188.010 |
|---|
