Sunny Tripower 8.0 Smart Energy
Hybrid inverter, 3-ph, 2 MPPT
Art-No.
0150369
Manufacturer No.
124612-00.01
Product details
Product information "Sunny Tripower 8.0 Smart Energy"

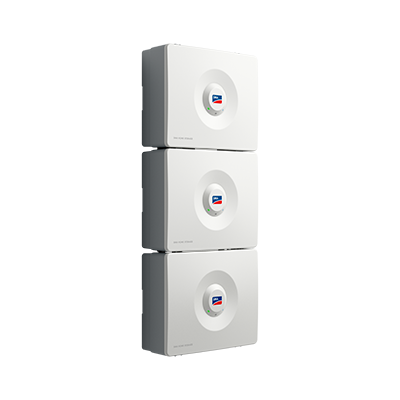

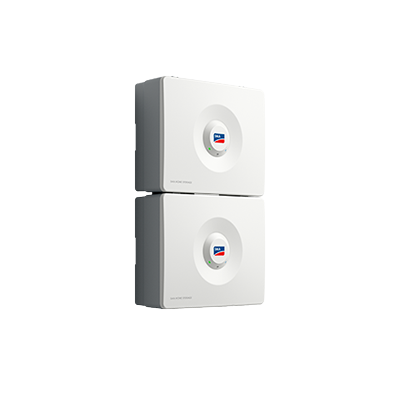

The Home Storage Com-Cable Set is additionally required to connect the inverter to the Home Storage battery. It is listed as a compatible accessory for this product and can be ordered separately.
With the 3-phase hybrid series from SMA, the name says it all - it is the smart energy solution for every home. With its wide range of functions and features, the Sunny Tripower Smart Energy is quickly installed and commissioned. Convenient configuration and monitoring via the SMA Smart Connected app and Sunny Portal. Compatible with many high-voltage storage systems from leading manufacturers.
Product advantages:
• Suitable for powerful modules
• Backup power operation via EPS connection
• AC + DC type 2 overvoltage protection integrated
Product features:
• AC power: 8.0 kW
• AC connection: 400 V, 3-phase
• Number of MPPT: 2
• DC input current: 12.5 A per MPPT
• DC input voltage: 330 - 800 V DC
• Communication: WLAN, Ethernet, CAN
• Interfaces: 5 x DI (FRE), 1 x DO
• Protection class: IP65
• Cooling: passive
• Weight: 30.0 kg
• Dimensions: 500 x 598 x 173 mm (W x H x D)
Technical details
| AC nominal power (kW) | 8.00 |
|---|---|
| Surge protection AC | type 2 |
| Contact ripple control receiver | yes |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | no |
| Battery Connection | AC/DC |
| DC connection | SUNCLIX |
| Surge protection DC | type 2 |
| Decibel | 30 |
| Display | w/o display |
| Feed-in phases | 3 |
| Backup system light | yes |
| Backup system full | no |
| European efficiency (%) | 97.80 |
| Protection degree | IP65 |
| Total number of string inputs | 2 |
| Integrated DC switch | yes |
| Contact for self-consumption optimization (e.g. for heat pump) | 1 |
| Charging voltage (V) | 150-600 |
| Charging current (A) | 30.00 |
| Max. AC power (kVA) | 8.00 |
| Max. output current (A) | 12.10 |
| Max. generator power DC (kWp) | 12.00 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 25.00 |
| Max. input current per MPPT (A). | 12,5/12,5 |
| Max. short circuit current (A) total | 40.00 |
| Max. short circuit current per MPPT (A) | 20/20 |
| MPP max. voltage range input (V) | 800.00 |
| Max. efficiency (%) | 98.20 |
| Min. voltage range input (V) | 150 |
| MPP min. voltage range input (V) | 330.00 |
| Min. temperature ambient (°C) | -25 |
| Grid protection | yes |
| Offgrid usable | no |
| Shadow management | yes |
| Rapid shutdown | no |
| Interface 1 | Ethernet |
| Interface 2 | RS485 |
| Start input voltage (V) | 180 |
| Topology | transformerless |
| Manufacturer | SMA |
|---|---|
| Manufacturer item name | Sunny Tripower 8.0 Smart Energy |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85044084 |
| Length incl. packaging (cm) | 59.50 |
|---|---|
| Width incl. packaging (cm) | 79.50 |
| Height incl. packaging (cm) | 25.00 |
| Weight incl. packaging (Kg) | 37.000 |
| Amount per Pallet | 8 |
| Pal. weight (kg) | 310.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1180 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 500.00 |
|---|---|
| Width without packaging (mm) | 598.00 |
| Height without packaging (mm) | 173.00 |
| Weight without packaging (kg) | 30.000 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 5 |
| Standard product warranty (yr) | 5 years ex works, 10 years with registration via the manufacturer |
