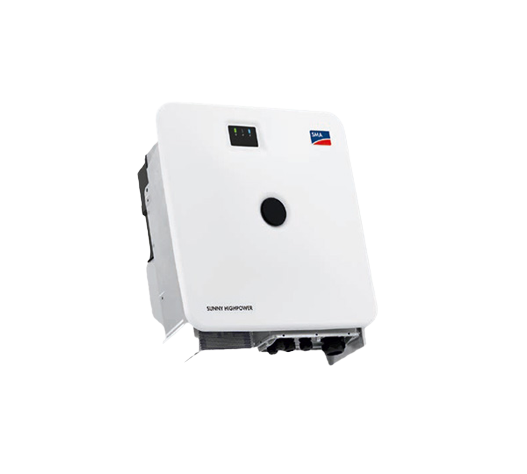

Sunny Highpower PEAK3 100-21, 100 kW
String inverter, 3-ph, 1 MPPT
Art-No.
0152461
Manufacturer No.
3-100-1000-1-21
Product details
Product information "Sunny Highpower PEAK3 100-21, 100 kW"
The Sunny Highpower PEAK3 series from SMA is the central component for large PV power plants. System voltages up to 1500 V DC and the use of customer-specific generator connection boxes enable efficient project calculation. Thanks to high-quality system components, there is no derating up to a temperature of 50°C.
Product advantages:
• Up to 200% DC/AC ratio possible
• AC+DC type 2 overvoltage protection
Product features:
• AC rated power: 100.0 kW
• Feed-in phases: 3
• AC mains voltage: 400 V
• Number of MPPT: 1
• Max. DC input voltage: 1100 V
• DC overvoltage protection: Type 2
• AC overvoltage protection: Type 2
• DC connector: Bolt terminal for cable lug up to 300 mm²
• Interfaces: 2 x Ethernet
• Protection class: IP65
• Cooling: active
• Dimensions: 830 x 770 x 462 mm (H x W x D)
• Weight: 99.0 kg
Technical details
| Topology | transformerless |
|---|---|
| Max. output current (A) | 151.00 |
| Max. generator power DC (kWp) | 200.00 |
| Step-Up converter | no |
| Min. temperature ambient (°C) | -25 |
| Min. voltage range input (V) | 570 |
| Protection degree | IP65 |
| Interface 2 | RS485 |
| Arc Fault Circuit Interrupter | no |
| Max. input current per MPPT (A). | 180 |
| Max. AC power (kVA) | 100.00 |
| Contact ripple control receiver | no |
| Surge protection AC | type 2 |
| Feed-in phases | 3 |
| Interface 1 | Ethernet |
| Rapid shutdown | no |
| Decibel | 69 |
| Display | w/o display |
| Total number of string inputs | 1 |
| Number of independent MPPT (pcs) | 1 |
| Degree of protection IP | IP65 |
| Start input voltage (V) | 625 |
| Max. short circuit current (A) total | 325.00 |
| AC nominal power (kW) | 100.00 |
| Offgrid usable | yes |
| MPP min. voltage range input (V) | 590.00 |
| European efficiency (%) | 98.40 |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| Max. short circuit current per MPPT (A) | 325 |
| UI curve diagnosis | no |
| Integrated AC switch | no |
| Max. input current DC (A) total | 180.00 |
| Shadow management | no |
| Max. efficiency (%) | 98.70 |
| MPP max. voltage range input (V) | 1000.00 |
| Integrated DC switch | no |
| String fuses | not included |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer | SMA |
| Intrastat product number (HS-code) | 85044084 |
| Manufacturer item name | Sunny Highpower 100-21 |
| Height incl. packaging (cm) | 115.00 |
|---|---|
| Amount per Pallet | 1 |
| Pal. weight (kg) | 115.00 |
| Weight incl. packaging (Kg) | 115.000 |
| Length incl. packaging (cm) | 64.00 |
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 85.00 |
| Pal. dim. LxBxH (mm) | 1200x800x500 |
| Weight without packaging (kg) | 99.000 |
|---|---|
| Length without packaging (mm) | 462.00 |
| Height without packaging (mm) | 830.00 |
| Width without packaging (mm) | 770.00 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 5 |
| Standard product warranty (yr) | 5 |
