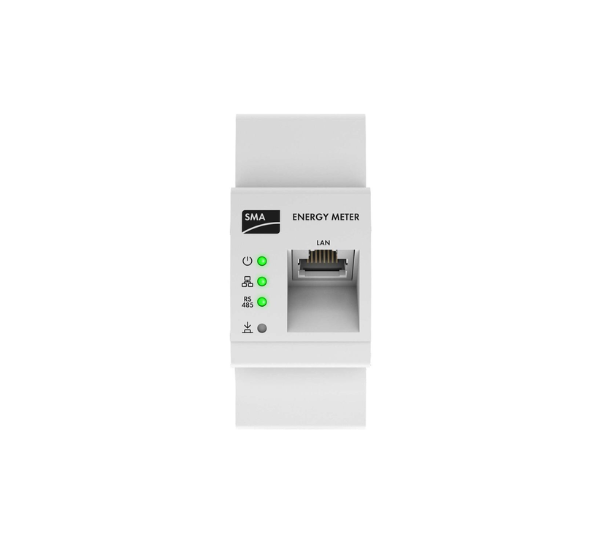

Commercial Energy Meter
3-phase, with 3 x CT, indirect up to 200 A
Art-No.
0159601
Manufacturer No.
COM-EMETER-B-20
Product details
Product information "Commercial Energy Meter"
With the SMA Commercial Energy Meter, all energy flows can be recorded quickly and easily, even in large systems. Thanks to bidirectional balancing measurement, it can be used both at the grid connection and with additional energy generators. With a width of just 2 sub-units, the device fits into any distribution board and the supplied CTs with split core can be installed quickly. Communication with the system takes place universally via the regular house network.
Product features:
• Measuring direction: bidirectional
• Measuring mode: indirect
• Input current: up to 200 A (CTs included)
• Mains connection: 400 V
• Connection phases: 3
• Communication: Ethernet
• Mounting: top-hat rail
• Protection class: IP20
• Dimensions: 35 (2 HP) x 88 x 65 mm (L x W x H)
• Weight: 0.2 kg
Technical details
| Max. input current (A) total | 200.00 |
|---|---|
| Feed-in phases | 3 |
| Type of AC measurement | indirect |
| Mounting type | DIN rail |
| Max. input current DC (A) total | 200.00 |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer | SMA |
| Intrastat product number (HS-code) | 90283019 |
| Manufacturer item name | Commercial Energy Meter 200A |
| Width incl. packaging (cm) | 3.50 |
|---|---|
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 6.50 |
| Pal. dim. LxBxH (mm) | 640x780x710 |
| Amount per big Box | 1 |
| Weight incl. packaging (Kg) | 0.950 |
| Amount per Pallet | 40 |
| Length incl. packaging (cm) | 8.80 |
| Pal. weight (kg) | 53.00 |
| Length without packaging (mm) | 65.00 |
|---|---|
| Width without packaging (mm) | 35.00 |
| Weight without packaging (kg) | 0.200 |
| Height without packaging (mm) | 88.00 |
| Warranty provider | SMA |
|---|---|
| Standard product warranty (yr) | 2 |
