SUN2000-4K-LB0
Product information "SUN2000-4K-LB0"
Optional dongles for WLAN-FE or 4G/3G/2G must be ordered separately.
The global manufacturer Huawei has been successful in the photovoltaic and storage market for many years. This is also reflected in a wide range of inverters and additional components for every application. Whether XXL large-scale systems or sophisticated complete systems with storage and intelligent accessories in the home or commercial segment. Thanks to the direct connection of the in-house LUNA high-voltage storage system and the module optimisers, the single-phase devices of the new LB0 series offer maximum flexibility in the residential sector, even for smaller systems. An extensive range of communication and protection components plus a backup function round everything off perfectly.
Product benefits:
- Integrated AFCI arc detection
- Also compatible with Huawei optimisers
- Can also be used for off-grid applications (stand-alone system)
Product features:
- AC rated power: 4 kW
- Feed-in phases: 1
- AC mains voltage: 230 V
- Number of MPPT: 2
- Max. DC input voltage: 600 V
- Input current per MPPT: 16.0 A
- DC overvoltage protection: Type 2
- AC overvoltage protection: Type 2
- AFCI arc detection: yes

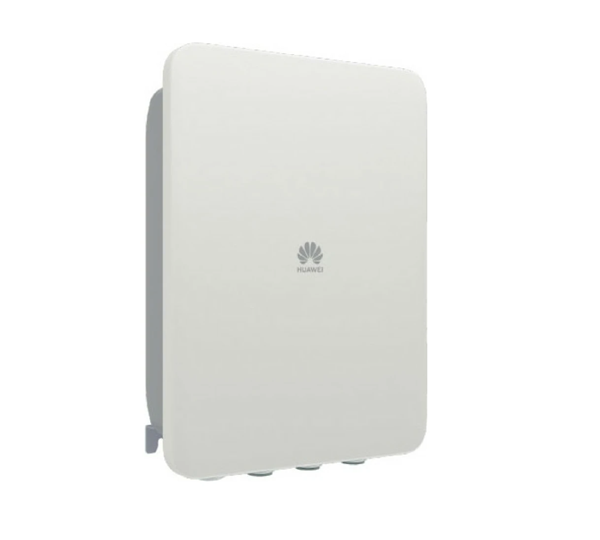

- Backup power capability: yes, with SmartGuard 63A S0
- Communication: RS485, WLAN, LAN with dongle (optional)
- Protection class: IP66
- Cooling: passive
- Dimensions: 365 x 425 x 130 mm (H x W x D)
- Weight: 15.0 kg
- Warranty: 10 years
Compatible optimisers:
- SUN2000-450W-P2
- SUN2000-600W-P
Technical details
| Max. generator power DC (kWp) | 6.00 |
|---|---|
| Max. efficiency (%) | 97.80 |
| Max. input current per MPPT (A). | 16 |
| Min. temperature ambient (°C) | -25 |
| Backup system full | yes with supply |
| Max. input voltage DC (V) | 600.00 |
| European efficiency (%) | 96.80 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Total number of string inputs | 2 |
| AC nominal power (kW) | 4.40 |
| Max. input current DC (A) total | 32.00 |
| Surge protection AC | type 2 |
| Battery Connection | DC |
| MPP min. voltage range input (V) | 40.00 |
| Start input voltage (V) | 50 |
| Display | w/o display |
| Max. output current (A) | 20.00 |
| Battery voltage | High Voltage |
| MPP max. voltage range input (V) | 560.00 |
| Max. short circuit current (A) total | 20.00 |
| Offgrid usable | yes |
| Backup system light | yes with supply |
| Max. AC power (kVA) | 4.60 |
| Surge protection DC | type 2 |
| Grid protection | yes |
| Charging current (A) | 20.00 |
| Arc Fault Circuit Interrupter | yes |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | SUN2000 -4K-LB0 |
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer | Huawei |
| Amount p. Cont. | 768 |
|---|---|
| Amount per Pallet | 16 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 19.000 |
| Height without packaging (mm) | 130.00 |
|---|---|
| Weight without packaging (kg) | 15.000 |
| Length without packaging (mm) | 425.00 |
| Width without packaging (mm) | 365.00 |
