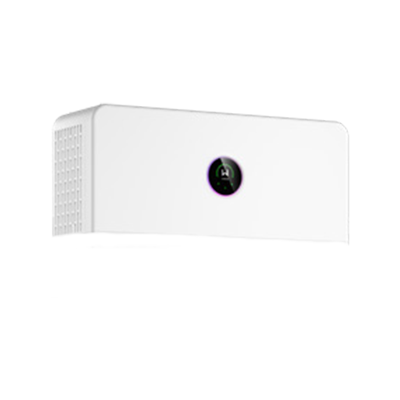

GW3.6K-EHA-G20
Hybrid inverter, 2 MPPTs, incl. base, 1-phase
Art-No.
0163610
Manufacturer No.
NAH3600-02-00P
Product details
Product information "GW3.6K-EHA-G20"
Not usable in DE.
Up to 6 storage modules can be installed in a single unit with the inverter. For more storage modules, they must be arranged in a second or third tower. The ESA Battery Expansion Kit is required for each additional tower.
The single-phase hybrid inverters of the Goodwe EHA-G20 series are designed for the compact ESA storage system. All components form a harmonious and visually appealing unit. The 5 kWh and 8 kWh storage modules can be flexibly combined. With up to six large storage units, a total usable capacity of 48 kWh is achievable. The backup connection, with a switching time of less than 4 ms, also supplies power to sensitive loads.
Product advantages:
• Hybrid inverter for Goodwe ESA compact system
• Up to 48 kWh usable with Goodwe Bat-D storage
• 20 A input current per MPPT
System specifications:
• AC rated power: 3.6 kW
• Feed-in phases: 1
• AC mains voltage: 230 V
• Storage connection: High voltage
• Number of MPPTs: 2
• Max. DC input voltage: 600 V
• DC surge protection: Type 2
• AC surge protection: Type 2
• AFCI arc fault detection: Yes
• Communication: Wi-Fi, LAN, RS485, Bluetooth
• Protection class: IP66
• Cooling: Passive
• Dimensions: 800 x 300 x 270 mm
• Weight: 24.0 kg
Technical details
| Topology | transformerless |
|---|---|
| Min. voltage range input (V) | 400 |
| Max. output current (A) | 32.80 |
| Max. AC power (kVA) | 3.60 |
| Interface 2 | W-Lan |
| Max. input voltage DC (V) | 600.00 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Display | with display |
| Max. short circuit current (A) total | 52.00 |
| Total number of string inputs | 2 |
| Min. temperature ambient (°C) | -35 |
| Max. input current per MPPT (A). | 20\/20 |
| European efficiency (%) | 96.50 |
| Surge protection AC | type 2 |
| Interface 1 | RS485 |
| Smart Home | yes |
| MPP min. voltage range input (V) | 40.00 |
| Max. generator power DC (kWp) | 7.20 |
| Start input voltage (V) | 50 |
| Rapid shutdown | yes |
| Charging voltage (V) | 350-550 |
| MPP max. voltage range input (V) | 560.00 |
| Max. efficiency (%) | 97.60 |
| Integrated DC switch | yes |
| Charging current (A) | 14.30 |
| Max. short circuit current per MPPT (A) | 26\/26 |
| Surge protection DC | type 2 |
| Backup system light | yes |
| Grid protection | yes |
| Max. input current DC (A) total | 40.00 |
| Arc Fault Circuit Interrupter | yes |
| Feed-in phases | 1 |
| AC nominal power (kW) | 3.60 |
| String fuses | not included |
| Backup system full | yes |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85044084 |
| Manufacturer item name | GW3.6K-EHA-G20 |
| Amount per Pallet | 4 |
|---|---|
| Pal. dim. LxBxH (mm) | 1120x957x1065 |
| Pal. weight (kg) | 161.80 |
| Width incl. packaging (cm) | 108.60 |
| Weight incl. packaging (Kg) | 34.740 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 47.10 |
| Length incl. packaging (cm) | 46.20 |
| Width without packaging (mm) | 800.00 |
|---|---|
| Height without packaging (mm) | 300.00 |
| Weight without packaging (kg) | 24.000 |
| Length without packaging (mm) | 270.00 |
| Warranty provider | GoodWe |
|---|---|
| Standard product warranty (yr) | 10 |
