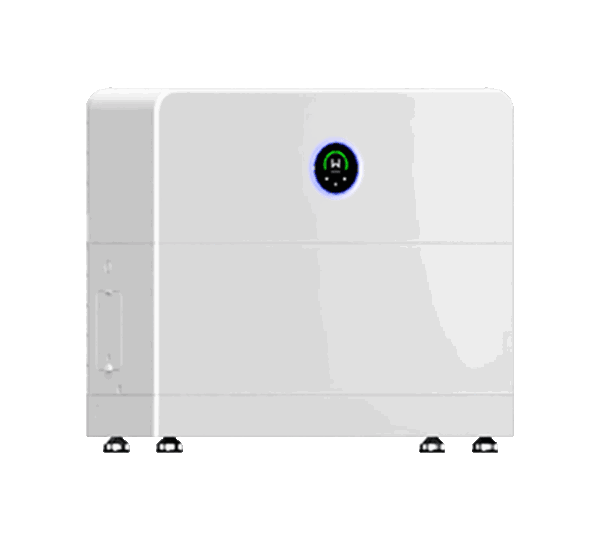

ESA - All-in-One, 8.0 kWh, 3.6 kW
Compact storage system, 2 MPPT, 1-phase
Art-No.
0164108
Product details
Product information "ESA - All-in-One, 8.0 kWh, 3.6 kW"
Not for use in Germany.
The 6.0 and 9.0 storage modules can be combined with the inverter at a C-rate of 0.5. The 5.1 and 8.3 modules can be used at a C-rate of 1C. If both variants are combined, only 0.5C is possible. We therefore recommend using a uniform C-rate across the system.
The single-phase hybrid inverters of the GoodWe EHA-G20 series, combined with the BAT-D high-voltage storage systems, form the compact ESA all-in-one energy storage system. All components create a harmonious and visually appealing unit. Up to 6 storage modules in four capacity sizes from 5 to 9 kWh can be flexibly combined, enabling a total usable capacity of up to 54 kWh. The power classes of the hybrid inverters range from 3 to 10 kW. Thanks to its comprehensive communication, protection, and string connection options, the system is ideal for residential to small commercial applications. The integrated backup connection provides power to even sensitive loads with a switchover time of less than 4 ms.
Product advantages:
• Visually appealing compact system
• Flexible combinations up to 54 kWh
• Up to 4 MPPTs and 42 A input current
• Can be retrofitted indefinitely
System product specifications:
• AC nominal power: 3.6 kW
• Feed-in phases: 1
• AC mains voltage: 230 V
• Storage connection: High voltage
• Number of MPPTs: 2
• Max. DC input voltage: 600 V
• DC surge protection: Type 2
• AC surge protection: Type 2
• AFCI arc fault detection: Yes
• Communication: Wi-Fi, LAN, RS485, Bluetooth
• Protection class: IP66
• Cooling: Passive
• Dimensions: 800 x 300 x 270 mm
• Weight: 24.0 kg
• Stand included
Storage system product specifications:
• Battery capacity (usable): 8.0 kWh
• Storage system model: GoodWe GW 8.3 BAT-D-G20
• Storage type: High voltage
• Expansion time window: Unlimited
• Number of storage modules in one unit: Up to 6
• Cascadable units: -
• Cell chemistry: LFP
• Communication: CAN
• Cooling: Active
• Cell heating: No
• Protection class: IP66
• Dimensions: 800 x 326 x 270 mm
• Weight: 79.0 kg per storage module
Scope of delivery:
• 1 x GoodWe GW3.6K-EHA-G20, hybrid inverter incl. base (item 0163610)
• 1 x GoodWe GW 8.3 BAT-D-G20, storage module (item 0163603)
Downloads
-
GW3.6K-EHA-G200163610
-
GW8.3-BAT-D-G200163603
-
GW3.6K-EHA-G200163610
-
GW8.3-BAT-D-G200163603
Technical details
| AC nominal power (kW) | 3.60 |
|---|---|
| Surge protection AC | type 2 |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | yes |
| Surge protection DC | type 2 |
| Display | with display |
| Backup system light | yes |
| Backup system full | yes |
| European efficiency (%) | 96.50 |
| Protection degree | IP66 |
| Total number of string inputs | 2 |
| Commercial system | no |
| Integrated DC switch | yes |
| Capacity extendable later | yes without restriction |
| Max. AC power (kVA) | 3.60 |
| Max. output current (A) | 32.80 |
| Max. generator power DC (kWp) | 7.20 |
| Max. input voltage DC (V) | 600.00 |
| Max. input current DC (A) total | 40.00 |
| Max. input current per MPPT (A). | 20/20 |
| Max. short circuit current (A) total | 52.00 |
| Max. short circuit current per MPPT (A) | 26/26 |
| MPP max. voltage range input (V) | 560.00 |
| Max. efficiency (%) | 97.60 |
| MPP min. voltage range input (V) | 40.00 |
| Min. temperature ambient (°C) | -20 |
| Grid protection | yes |
| Usable capacity (kWh) | 8.00 |
| Rapid shutdown | yes |
| Smart Home | yes |
| Start input voltage (V) | 50 |
| String fuses | not included |
| Topology | transformerless |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 51.480 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Manufacturer | GoodWe |
| Manufacturer item name | GW8.3-BAT-D-G20*GW3.6K-EHA-G20 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85076000 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Weight incl. packaging (Kg) | 119.840 |
|---|
| Weight without packaging (kg) | 103.000 |
|---|
| Warranty provider | GoodWe |
|---|
