EV Wall, 22 kW
AC, type 2 charging cable 8 m, RFID, QR, MID
Art-No.
0163665
Manufacturer No.
EVWC-332-C8R-E-B
Product details
Product information "EV Wall, 22 kW"
The charging power is up to 22 kW and can be controlled either statically or dynamically. The Infinity Kit (0159658) is required for dynamic overload protection. An Ethernet connection is required for installation.

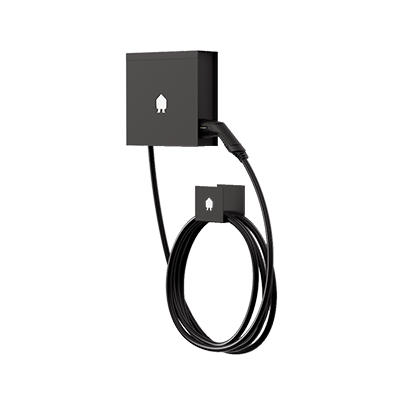

The Smappee EV Wall is a compact, wall-mounted AC charging station for electric vehicles with one connection. It impresses with its user-friendly installation, which is quick and easy thanks to simple cable configuration and an installation wizard. The EV Wall is available with a fixed type 2 charging cable. Charging processes can be clearly displayed via the Smappee Cloud and app. Additional functions are available in the Smart or Business package.
Product advantages:
• Compact, wall-mounted charging station
• User-friendly installation
• Permanently integrated type 2 charging cable
• Display of charging processes via cloud & app
Product features:
• Max. charging power per charge point: 22 kW
• Access control: RFID (1 card included in delivery)
• AC grid voltage: 230 / 400 V
• Feed-in phases: 3-phase
• Phase switching: yes
• MID meter: yes
• Calibrated: no
• Compliant with EnWG § 14a: yes (with SG Ready Module (0161749))
• Interfaces: Ethernet
• Protection class: IP54
• Dimensions: 300 x 300 x 110 mm
• Weight without packaging: 12.4 kg
Technical details
| Open charge point protocoll (OCPP) | OCPP 1.6J |
|---|---|
| Measuring Instruments Directive MID | yes |
| Number of charge points | 1 |
| Min. temperature ambient (°C) | -25 |
| Integrated phase changeover (1/3 phase) | yes |
| Max. nominal charging power (kW) | 22.00 |
| Protection degree | IP54 |
| Connection charge point | fixed cable |
| Charging mode | AC |
| Intrastat country of origin | Belgium |
|---|---|
| Manufacturer item name | EV Wall Black 8m cable incl. holder, 22kW |
| Intrastat product number (HS-code) | 85371098 |
| Manufacturer | Smappee |
| Pal. dim. LxBxH (mm) | 1200x800x1520 |
|---|---|
| Width incl. packaging (cm) | 37.00 |
| Height incl. packaging (cm) | 28.00 |
| Pack. material | cardboard box |
| Amount per Pallet | 30 |
| Length incl. packaging (cm) | 40.00 |
| Pal. weight (kg) | 397.00 |
| Weight incl. packaging (Kg) | 13.500 |
| Length without packaging (mm) | 300.00 |
|---|---|
| Height without packaging (mm) | 110.00 |
| Width without packaging (mm) | 300.00 |
| Weight without packaging (kg) | 12.400 |
| Warranty provider | Smappee |
|---|---|
| Standard product warranty (yr) | 2 |
