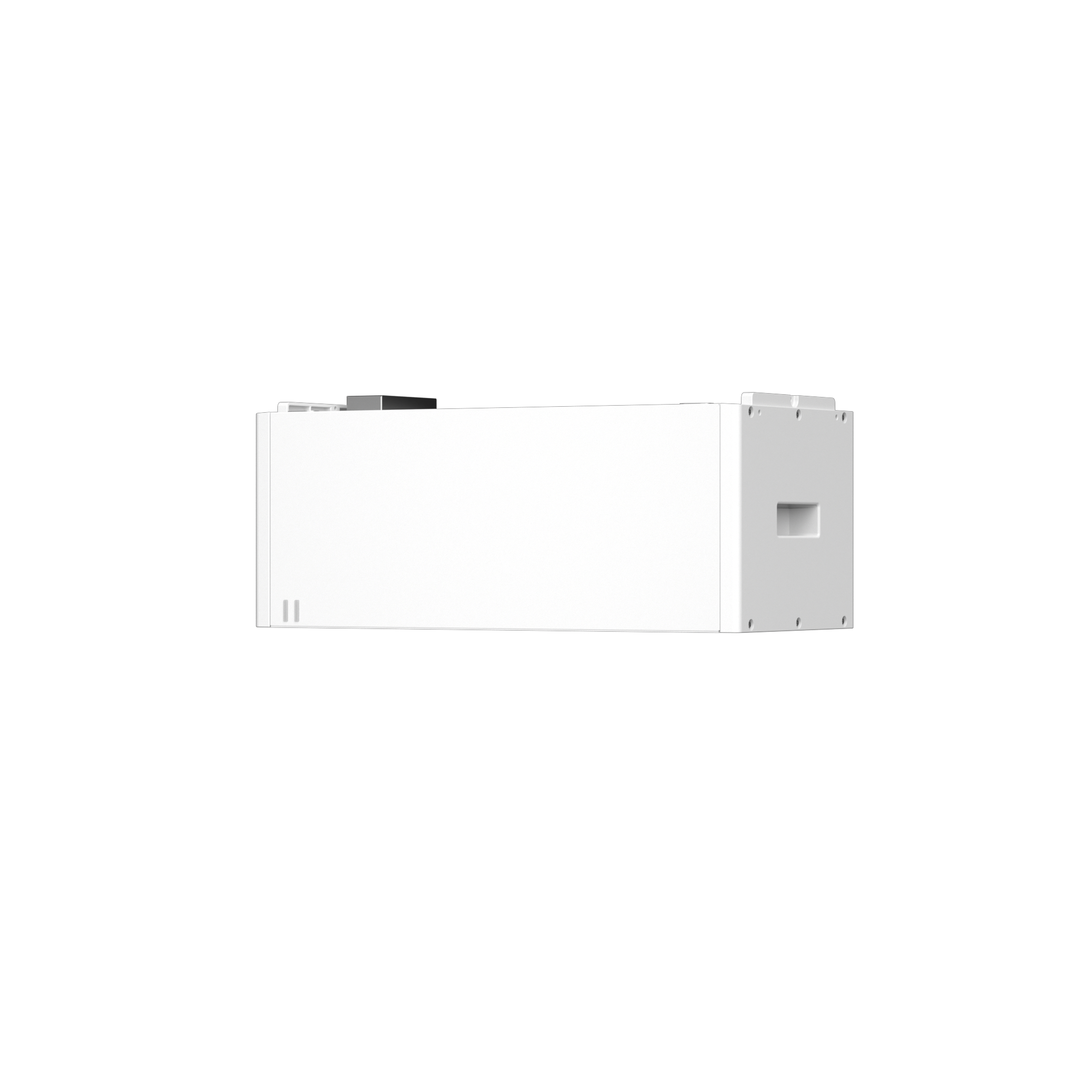

Battery-Box HVS+ 2,56 kWh
Product information "Battery-Box HVS+ 2,56 kWh"

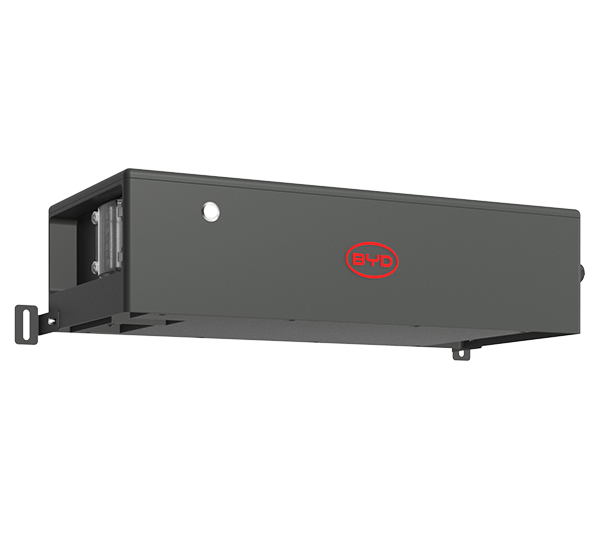

There is now also a ‘+’ for the latest generation of HVS high-voltage storage systems from BYD. In addition to the proven properties and key data, an improved BCU has been used in the new HVS+. This can be used flexibly for the storage modules of the HVB, HVS+ and HVM+ series. The new automatic SOC balancing optimiser eliminates the need to manually adjust the charge level during initial installation and expansion. The revised BCU connection management with connectors on the power and communication level saves further valuable time during installation. The configuration of the system is also made easier with a new installer app. At the same time, there is also an end customer app for convenient system monitoring.
Product benefits:
- Proven wireless stacking design
- Up to 5 storage modules per unit
- Can be retrofitted indefinitely
Product features:
- Battery capacity (usable): 2.56 kWh
- Storage type: High-voltage
- Nominal voltage: 102.4 V
- Extension time window: unlimited
- Number of storage modules in a unit: 2 to 5
- Cell chemistry: LFP
- Communication: CAN, RS485
- Cooling: passive
- Protection class: IP55
- Dimensions: 240 x 610 x 282 mm (HxWxD)
- Weight: 38.5 kg
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 38.500 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Technical details
| Nominal Capacity (Ah) | 25.00 |
|---|---|
| Max. output current charging (A) | 25.00 |
| Min. temperature ambient (°C) | -10 |
| Usable capacity (kWh) | 2.56 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Nominal voltage DC (V) | 102.40 |
| Protection degree | IP55 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | BYD |
| Dangerous goods Weight (net) (kg) | 38.500 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Manufacturer item name | BATTERY-BOX HVS+ (2,76 kWh) |
| UN No. | 3480 |
| Width incl. packaging (cm) | 35.40 |
|---|---|
| Amount p. Cont. | 480 |
| Length incl. packaging (cm) | 68.20 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 32.20 |
| Weight incl. packaging (Kg) | 41.200 |
| Amount per Pallet | 15 |
| Pal. dim. LxBxH (mm) | 1140x725x1750 |
| Amount Pal. p. Cont. | 32 |
| Weight without packaging (kg) | 38.500 |
|---|---|
| Length without packaging (mm) | 610.00 |
| Width without packaging (mm) | 282.00 |
| Height without packaging (mm) | 240.00 |
| Standard product warranty (yr) | 10 |
|---|---|
| Warranty provider | BYD |
