B-Box HVB 29.6 + Verto Plus 30.0
HV-Speichersystem, 26,69 kWh, 3-phasig
Art-No.
0162611
Product details
Product information "B-Box HVB 29.6 + Verto Plus 30.0"
The included RJ45 termination connector for the data bus must be pre-assembled on-site. To do this, insert and crimp a wire jumper between pins 1 and 6 (viewed from above on the flat connector side with the pin contact surfaces, cable entry facing down, pins ascending from left to right). An actual resistor is not required.
As with the Fronius GEN24 devices, the "plus" also makes the difference in the new Verto series. The Verto Plus hybrid inverters are factory-equipped with a powerful high-voltage storage connection. With 15 to 33 kW, they are the ideal system components for the small commercial segment. The proven, comprehensive communications features are complemented by AC and DC surge protection and Fronius Arc Guard Technology. High security standards are also set for data backup with servers in Europe. In addition to the proven features and key specifications, the new HVB series from BYD features an improved BCU. This can be used flexibly for the HVB, HVS+, and HVM+ storage modules. The new automatic SOC balancing optimizer eliminates the need for manual adjustment of the charge level during initial installation and expansion.
Product advantages:
• 28 A input current per MPPT / string
• 3-phase backup power possible with Fronius Backup Switch + Controller
• Storage with wireless stacking concept
• Up to 10 storage modules per tower
• Max. 3 units scalable in parallel up to 89.07 kWh
System product features:
• AC nominal power: 29.9 kW
• Grid connection: 3-phase
• AC grid voltage: 400 V
• Number of MPPTs: 3
• Max. DC input voltage: 1000 V
• Max. DC input current: 28 A per MPPT
• DC surge protection: Type 1+2
• AC surge protection: Type 2
• DC connector type: PV – Stäubli MC4, Bat – Stäubli MC4 Evo Stor
• Number of battery connections: 1
• Communication: WLAN, Ethernet
• Interfaces: 2 x RS485, 6 x DI (FRE), 6 x DO
• Protection class: IP66
• Cooling: active
• Weight: 43.0 kg
• Dimensions: 865 x 574 x 279 mm (H x W x D)
• Warranty: 2.5 years + an additional 5 years after free registration
Storage product features:
• Battery capacity (usable): 29.69 kWh
• Nominal voltage: 512.0 V
• Expansion time window: unlimited
• Number of storage modules in one unit: 4 to 10
• Number of units in parallel: 3
• Cell chemistry: LFP
• Interfaces: RJ45, CAN, WLAN/LAN module (optional)
• BAT connectors: MC4
• Protection class: IP55
• Dimensions: 1327 x 610 x 282 mm (H x W x D)
• Weight: 287.1 kg
Scope of delivery:

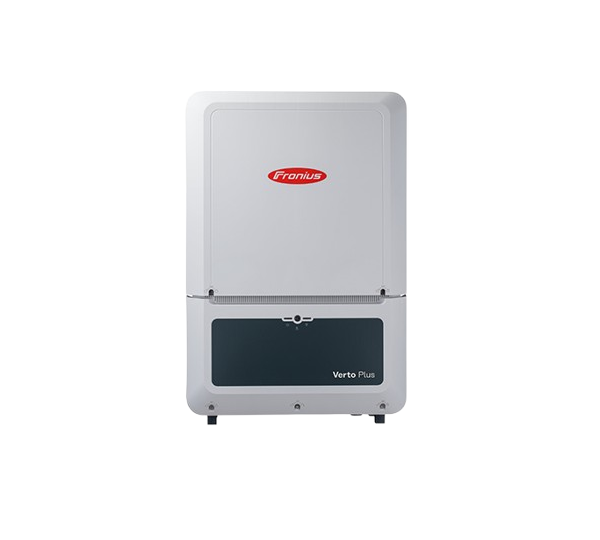

• 1 x Fronius Verto Plus 30.0 Hybrid Inverter (item 0159336)
• 1 x Fronius Smart Meter TS 65A-3 (item 0151650)
• 1 x BYD B-Box HV+ BCU + Base (item 0161507)
• 10 x BYD HVB storage modules (item 0161119)
Downloads
-
Verto Plus 30.00159336
-
Fronius Smart Meter TS 65A-30151650
-
B-Box HV-BCU + Base0161507
-
Battery-Box HVB 2,97 kWh0161119
-
Verto Plus 30.00159336
-
Fronius Smart Meter TS 65A-30151650
-
Battery-Box HVB 2,97 kWh0161119
Technical details
| AC nominal power (kW) | 29.90 |
|---|---|
| Surge protection AC | type 2 |
| Contact ripple control receiver | yes |
| Number of independent MPPT (pcs) | 3 |
| Arc Fault Circuit Interrupter | yes |
| DC connection | MC4 |
| Surge protection DC | type 1 and type 2 |
| Display | w/o display |
| Feed-in phases | 3 |
| Backup system light | yes with supply |
| Backup system full | yes with supply |
| European efficiency (%) | 97.96 |
| Protection degree | IP55 |
| Total number of string inputs | 6 |
| Commercial system | no |
| Integrated AC switch | no |
| Integrated DC switch | yes |
| Capacity extendable later | yes without restriction |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| Max. AC power (kVA) | 29.90 |
| Max. output current (A) | 43.50 |
| Max. generator power DC (kWp) | 45.00 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 84.00 |
| Max. input current per MPPT (A). | 28 |
| Max. discharging power (kW) | 25.60 |
| Max. short circuit current (A) total | 150.00 |
| Max. short circuit current per MPPT (A) | 50 |
| MPP max. voltage range input (V) | 870.00 |
| Max. nominal charging power (kW) | 25.60 |
| Max. efficiency (%) | 98.15 |
| MPP min. voltage range input (V) | 360.00 |
| Min. temperature ambient (°C) | -20 |
| Offgrid usable | no |
| Usable capacity (kWh) | 29.69 |
| Start input voltage (V) | 150 |
| Topology | transformerless |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 273.000 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Manufacturer | BYD + Fronius |
| Manufacturer item name | HVB 29.6*Verto plus 30.0 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85076000 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Weight incl. packaging (Kg) | 369.050 |
|---|
| Weight without packaging (kg) | 331.240 |
|---|
