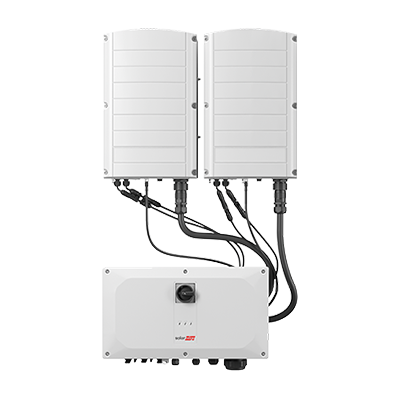

SOLAREDGE SE66.6K (MC4 CONNECTORS/DC-SWITCH)
Información sobre el producto "SOLAREDGE SE66.6K (MC4 CONNECTORS/DC-SWITCH)"
*Synergy Manager con conector MC4; protección contra sobretensión en CC tipo 2 integrado; con DC-Switch; sin fusibles.
- Pre-commissioning feature for automated validation of system components and wiring during the site installation process and prior to grid connection
- Easy 2-person installation with lightweight, modular design (each inverter consists of 2 Synergy Units and one Synergy Manager)
- Independent operation of each Synergy Unit enables higher uptime and easy serviceability
- Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety
- Built-in arc fault protection (AFCI)
- Built-in PID mitigation for maximized system performance
- Monitored (applicable only for DC and AC SPD) and field-replaceable surge protection devices, to better withstand surges caused by lightning or other events: integrated RS485 and Type 2 DC SPDs
- Integrated DC safety switch eliminates the need for external DC isolators
- Built-in module-level monitoring with Ethernet or cellular communication for full system visibility
Ficha técnica
| Topología | transformerless |
|---|---|
| Tipo de conector de DC | MC4 |
| Máx. Número máx. de entradas de strings | 8 |
| Temperatura ambiente mín. (°C) | -40 |
| Convertidor step-up | no |
| Grado de protección | IP65 |
| Tensión de entrada máx. DC (V) | 1000.00 |
| Interfaz 1 | RS485 |
| Eficiencia europea (%) | 98.00 |
| Potencia máx. del generador DC (kWp) | 116.55 |
| Máx. Potencia AC (kVA) | 66.60 |
| Monitor | sin pantalla |
| Grado de protección IP | IP65 |
| Decibelios | 67 |
| Interruptor de DC integrado | sí |
| Potencia nominal AC (kW) | 66.60 |
| Protección contra sobretensiones DC | tipo 2 |
| Interfaz 2 | Ethernet |
| Arc Fault Circuit Interrupter | sí |
| Corriente de entrada máx. DC (A) total | 96.50 |
| Max. eficiencia (%) | 98.30 |
| Intrastat país de origen | Israel |
|---|---|
| Intrastat número de producto (HS-Code) | 85044086 |
| Fabricante | SolarEdge |
| Fabricante descripción del artículo | SE66.6K for 4000 V -Power Grid*SESUK-RW |
| Peso incluido en el embalaje (kg) | 89.460 |
|---|
| Peso sin embalaje (kg) | 82.000 |
|---|
| Garantía de producto (años) | 12 |
|---|---|
| Proveedor de garantía | SolarEdge |
