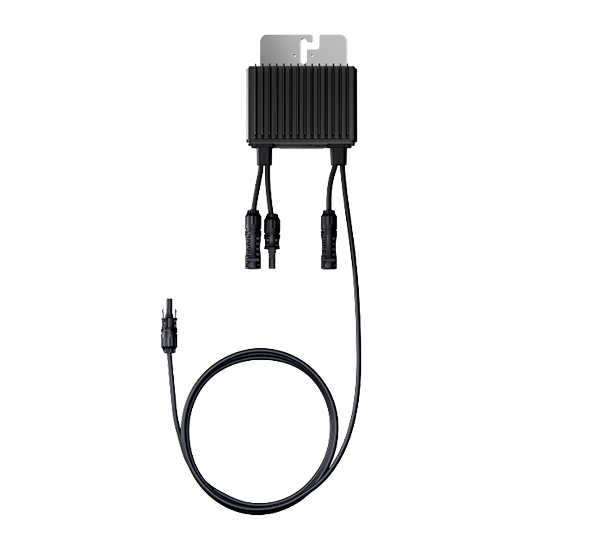

SOLAREDGE POWER OPTIMIZER H1300
Información sobre el producto "SOLAREDGE POWER OPTIMIZER H1300"
Thanks to the unique system concept with the high-performance power optimizers, SolarEdge enables the ideal energy utilization of your PV system. The high flexibility in arrangement and interconnection is reflected in an outstanding efficiency of 99.5%. In addition, the SolarEdge optimizers minimize any losses due to module mismatching.
The integrated functions such as Safe-DC and monitoring of the DC connectors ensure safety throughout the entire system. The SolarEdge H1300 optimizers are specially designed for use with SolarEdge TerraMax series inverters for large-scale systems and are even compatible with bifacial modules.
Product advantages:
• Outstanding efficiency (99.5 %)
• Monitored DC plug connections
• Safe-DC function
• Compatible with bifacial PV modules
Product features:
• Max. DC power: 1300 Wp
• Max. System voltage: 1500 V
• Max. Current: 15.0 A
• MPPT voltage range: 12.5 to 105 V
• Max. DC input voltage: 125 V
• Communication: Powerline
• Connection plug: MC4-Evo2
• Length of output cable: 5.3 m (+), 0.1 m (-)
• Input cable length: 0.16 m
• Protection class: IP68
• Warranty: 25 years
Ficha técnica
| Longitud del cable de salida más (cm) | 530.00 |
|---|---|
| Tensión de entrada máx. DC (V) | 125.00 |
| Corriente de cortocircuito Isc (A) | 15.00 |
| Tipo de conector de DC | MC4 Evo 2 |
| Rango de tensión mín. de entrada MPP (V) | 12.50 |
| Potencia nominal de entrada (W) | 130 |
| Longitud del cable de salida menos (cm) | 10.00 |
| Grado de protección | IP68 |
| Rango de tensión máx. de entrada MPP (V) | 105.00 |
| Intrastat país de origen | China |
|---|---|
| Fabricante descripción del artículo | H1300 |
| Fabricante | SolarEdge |
| Intrastat número de producto (HS-Code) | 90328900 |
| Peso incluido en el embalaje (kg) | 1.240 |
|---|---|
| Pack. material | cardboard box |
| Cantidad por palet | 420 |
| Pal. dim. LxBxH (mm) | 1200x800x2180 |
| Cantidad por caja grande | 10 |
| Peso sin embalaje (kg) | 1.170 |
|---|---|
| Anchura sin embalaje (mm) | 129.00 |
| Longitud sin embalaje (mm) | 155.00 |
| Altura sin embalaje (mm) | 59.00 |
| Garantía de producto (años) | 25 |
|---|---|
| Proveedor de garantía | SolarEdge |
