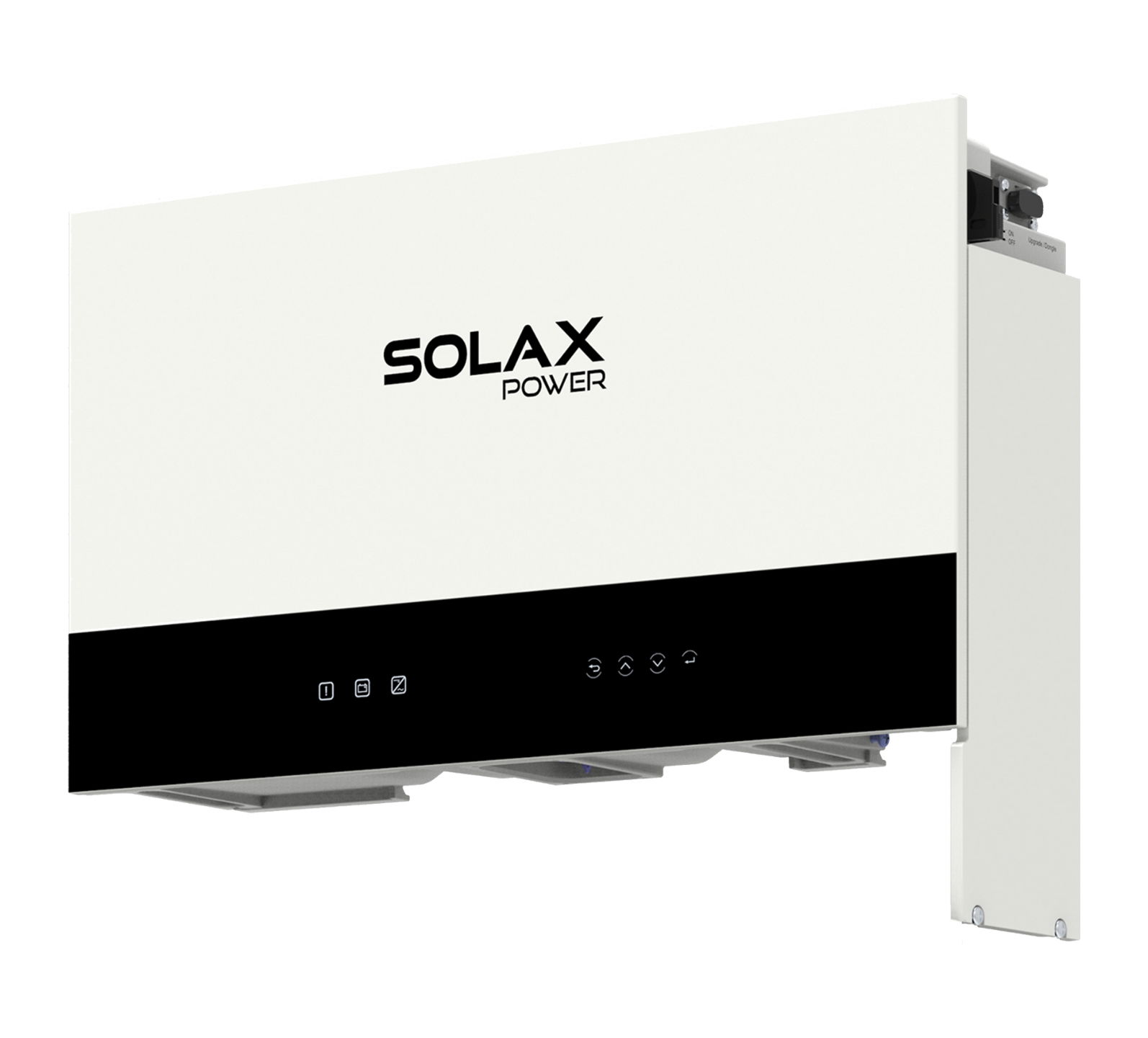

X3-IES-12K (SPD TYPE II/AFCI)
Product information "X3-IES-12K (SPD TYPE II/AFCI)"
Economic
All in one design, plug and play, expandable and installation easily.
Maximum 200% oversize and 200% PV input power Maximum 20A DC single string input current, support high power solar panel Low start output voltage makes inverter longer working time.
Built-in shadow tracking function
Robust
Robust back-up ability, switchover time ＜10ms(UPS level) , up to 200% EPS output for 10s, support half-wave loads Battery heating technology, -30°C extreme environment operation
Safe
IP66 protection level AC&DC SPD type II, always guarding the inverter AFCI included
Intelligent
AI ready, forecasting solar generation and home consumption, smart energy management strategy VPP ready, SolaX cloud support resource aggregator(2030.5, OpenADR).
Micro-grid ready, supporting a variety of scenarios, both on-grid and off-grid, balancing power between PCS and Hybrid in real time. Support smart scene function, intelligent loads management(e.g., Heat pump, EV charger).
Support 7×24h scheduling mode
Support Wireless meter solution
Technical details
| Topology | transformerless |
|---|---|
| Max. input current DC (A) total | 52.00 |
| Max. AC power (kVA) | 132.00 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Display | with display |
| Start input voltage (V) | 140 |
| Max. generator power DC (kWp) | 240.00 |
| Max. short circuit current per MPPT (A) | 40\/25 |
| Max. output current (A) | 19.20 |
| Min. temperature ambient (°C) | -35 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Decibel | 31 |
| Max. input current per MPPT (A). | 32\/20 |
| MPP max. voltage range input (V) | 950.00 |
| Step-Up converter | yes |
| Max. efficiency (%) | 98.00 |
| Integrated DC switch | yes |
| MPP min. voltage range input (V) | 110.00 |
| Total number of string inputs | 3 |
| Surge protection DC | type 2 |
| AC nominal power (kW) | 120.00 |
| Arc Fault Circuit Interrupter | yes |
| Max. short circuit current (A) total | 65.00 |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolaX Power |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer item name | X3-IES-12K |
| Weight incl. packaging (Kg) | 44.500 |
|---|---|
| Height incl. packaging (cm) | 57.60 |
| Pal. weight (kg) | 549.00 |
| Amount per Pallet | 12 |
| Amount p. Cont. | 288 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 77.70 |
| Amount per big Box | 1 |
| Pal. dim. LxBxH (mm) | 1200x800x2196 |
| Width incl. packaging (cm) | 32.40 |
| Width without packaging (mm) | 210.00 |
|---|---|
| Length without packaging (mm) | 717.00 |
| Weight without packaging (kg) | 37.000 |
| Height without packaging (mm) | 405.00 |
| Warranty provider | SolaX Power |
|---|---|
| Product warranty (yr) | 10 |
