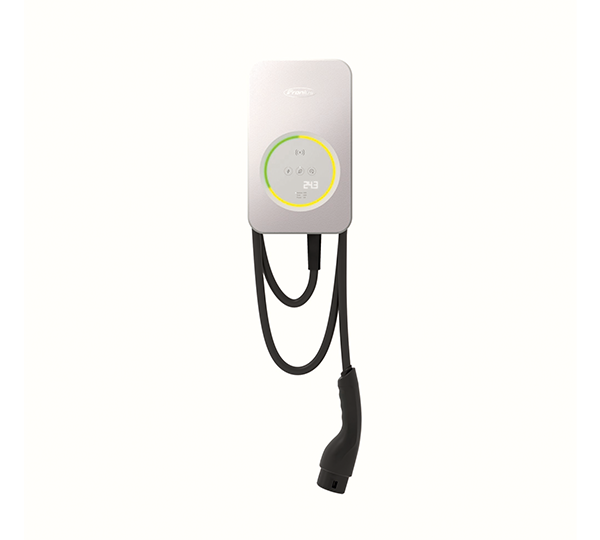

Wattpilot Flex Home 11 C6, 11 kW
Product information "Wattpilot Flex Home 11 C6, 11 kW"
In addition to its elegant design, the new Fronius Wattpilot Flex also boasts state-of-the-art technology. Convenient Plug ‘n’ Drive system, dynamic PV surplus charging and load management. Automatic phase switching ensures maximum efficiency. Convenient control via push-button directly on the Wattpilot or via smartphone/tablet/app. Up to ten user profiles with secure activation via RFID or app ensure transparent and flexible use. The Solar.wattpilot app enables convenient monitoring of the wallbox via smartphone or tablet.
Product advantages:
- Award-winning, elegant design
- Integrated AC+DC residual current circuit breaker
- Dynamic load management
- Simple operation thanks to Plug ‘n’ Drive
Product features:
- Charging power per charging point: 3.68 kW (1-phase), 11 kW (3-phase)
- Access control: RFID, Solar.wattpilot app
- AC mains voltage, feed-in phases: 230 / 400 V, 1- or 3-phase
- Phase switching: yes (only for 3-phase grid connection)
- Interfaces: LAN, Wifi, 2 x DI
- MID counter: no
- Housing colour: Telegrey 4
- Protection class: IP66
- Dimensions: 325 x 195 x 105 mm (HxWxD)
- Weight without packaging: 4,1 kg
Technical details
| Number of charge points | 1 |
|---|---|
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Integrated phase changeover (1/3 phase) | yes |
| Max. nominal charging power (kW) | 11.00 |
| Open charge point prot (OCPP) | OCPP 1.6 |
| Charging power per charge point (kW) | 11.00 |
| Connection charge point | fixed cable |
| Charging mode | AC |
| Surplus charge | yes |
| Measuring Instruments Directive MID | no |
| Manufacturer | Fronius |
|---|---|
| Intrastat country of origin | Austria |
| Manufacturer item name | Wattpilot Flex Home 11 C6 |
| Intrastat product number (HS-code) | 85371091 |
| Pal. dim. LxBxH (mm) | 1200x800x1975 |
|---|---|
| Length incl. packaging (cm) | 59.50 |
| Pack. material | cardboard box |
| Amount per Pallet | 40 |
| Width incl. packaging (cm) | 40.00 |
| Height incl. packaging (cm) | 18.00 |
| Weight incl. packaging (Kg) | 6.420 |
| Length without packaging (mm) | 325.00 |
|---|---|
| Height without packaging (mm) | 105.00 |
| Weight without packaging (kg) | 4.100 |
| Width without packaging (mm) | 195.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
