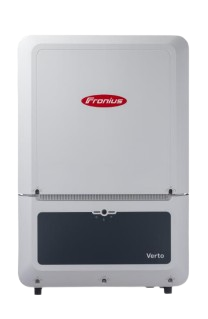

Verto 27.0
Product information "Verto 27.0"
With its new Verto series, Fronius is bringing a breath of fresh air to the power classes from 25 to 33.3 kW. High flexibility thanks to 4 MPP trackers. Maximum safety thanks to integrated arc detection Arc Guard and overvoltage protection on AC and DC connections. Thanks to open interfaces, universal application options for energy management with Wattpilot, Ohmpilot & Co. The integrated data logger also has numerous connection options for external control signals or load management.
Product advantages:
- 28 A input current per MPPT / string
- Integrated AC+DC overvoltage protection type 1+2
- Integrated AFCI arc detection
- Integrated data logger + web server
Product features:
- AC power: 27.0 kW
- AC connection: 400 V, 3-phase
- Number of MPPT: 4
- DC input current: 28 A per MPPT / string
- Connections per MPPT: 2
- DC connection: Stäubli MC4
- Communication: WLAN, LAN
- Interfaces: 2 x RS485, 6 x DI, 6 x DI / DO (FRE)
- Protection class: IP66
- Cooling: active
- Dimensions: 865 x 574 x 278 mm (H x W x D)
- Weight: 44.75 kg
- Warranty: 2 years + a further 3 years after free registration
Technical details
| Topology | transformerless |
|---|---|
| DC connector type | MC4 |
| Min. voltage range input (V) | 150 |
| Total number of string inputs | 8 |
| Max. input current DC (A) total | 84.00 |
| MPP min. voltage range input (V) | 150.00 |
| Min. temperature ambient (°C) | -40 |
| Surge protection AC | type 1 and type 2 |
| Protection degree | IP66 |
| Start input voltage (V) | 150 |
| Number of independent MPPT (pcs) | 4 |
| Max. AC power (kVA) | 27.00 |
| MPP max. voltage range input (V) | 870.00 |
| Max. input voltage DC (V) | 1000.00 |
| Max. short circuit current per MPPT (A) | 50,0 |
| Max. input current per MPPT (A). | 28,0 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. efficiency (%) | 98.03 |
| Decibel | 55 |
| Display | w/o display |
| AC nominal power (kW) | 27.00 |
| Max. generator power DC (kWp) | 40.50 |
| European efficiency (%) | 97.79 |
| Integrated DC switch | yes |
| Max. output current (A) | 40.90 |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| Arc Fault Circuit Interrupter | yes |
| Max. short circuit current (A) total | 150.00 |
| Surge protection DC | type 1 and type 2 |
| Intrastat product number (HS-code) | 85044086 |
|---|---|
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Manufacturer item name | Verto 27.0 |
| Width incl. packaging (cm) | 76.00 |
|---|---|
| Amount per Pallet | 4 |
| Pal. dim. LxBxH (mm) | 1750x800x2136 |
| Length incl. packaging (cm) | 96.00 |
| Weight incl. packaging (Kg) | 53.800 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 39.50 |
| Height without packaging (mm) | 279.00 |
|---|---|
| Weight without packaging (kg) | 41.750 |
| Length without packaging (mm) | 865.00 |
| Width without packaging (mm) | 574.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
