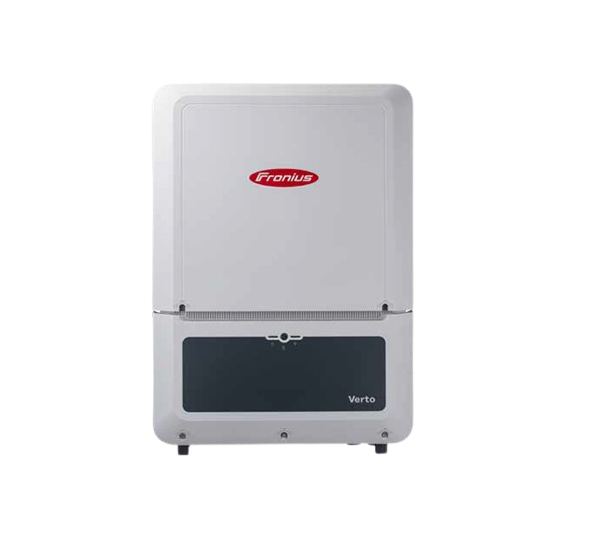

Verto 25.0 400
Product information "Verto 25.0 400"
Unlike the GEN24, the Verto series cannot be converted into a hybrid WR using an activation code. The Verto Plus devices must be ordered explicitly here.
With its new Verto series, Fronius is bringing a breath of fresh air to the power classes from 15 to 33.3 kW. High flexibility thanks to up to 4 MPP trackers and high DC input currents. Maximum safety thanks to Fronius Arc Guard Technology and overvoltage protection on AC and DC connections. High safety standards are also set for data backup with servers in Europe. Thanks to open interfaces, there are universal application options for energy management with Wattpilot flex, Ohmpilot & Co. The integrated data logger also has numerous connection options for external control signals or load management.
Product benefits:
- 28 A input current per MPPT / string
- Integrated AC+DC overvoltage protection
- Integrated AFCI arc detection
- Integrated data logger + web server
Product features:
- AC rated power: 25.0 kW
- Mains connection: 3-phase
- AC mains voltage: 400 V
- Number of MPPT: 3
- Max. DC input voltage: 1000 V
- Max. DC input current: 28 A per MPPT / string
- DC overvoltage protection: Type 1+2
- AC overvoltage protection: Type 2
- DC plug type: Stäubli MC4
- Communication: WLAN, LAN
- Interfaces: 2 x RS485, 6 x DI (FRE), 6 x DO
- Protection class: IP66
- Cooling: active
- Dimensions: 730 x 540 x 278 mm (H x W x D)
- Weight: 35.0 kg
- Warranty: 2.5 years + a further 5 years after free registration
Technical details
| Topology | transformerless |
|---|---|
| AC nominal power (kW) | 25.00 |
| DC connector type | MC4 |
| Max. input current DC (A) total | 84.00 |
| MPP min. voltage range input (V) | 150.00 |
| Min. temperature ambient (°C) | -40 |
| Decibel | 57 |
| Protection degree | IP66 |
| Max. generator power DC (kWp) | 37.50 |
| MPP max. voltage range input (V) | 870.00 |
| Number of independent MPPT (pcs) | 3 |
| European efficiency (%) | 98.35 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Total number of string inputs | 4 |
| Display | w/o display |
| Max. short circuit current per MPPT (A) | 50 |
| Max. efficiency (%) | 98.56 |
| Contact ripple control receiver | yes |
| Arc Fault Circuit Interrupter | yes |
| Max. input current per MPPT (A). | 28 |
| Min. voltage range input (V) | 15 |
| Max. AC power (kVA) | 25.00 |
| Max. short circuit current (A) total | 50.00 |
| Surge protection DC | type 1 and type 2 |
| Max. output current (A) | 36.20 |
| Manufacturer item name | Verto 25.0 400 |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Height incl. packaging (cm) | 39.40 |
|---|---|
| Amount per Pallet | 9 |
| Pal. dim. LxBxH (mm) | 1200x800x2002 |
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 61.40 |
| Length incl. packaging (cm) | 80.00 |
| Weight incl. packaging (Kg) | 41.750 |
| Height without packaging (mm) | 278.00 |
|---|---|
| Width without packaging (mm) | 540.00 |
| Weight without packaging (kg) | 35.200 |
| Length without packaging (mm) | 730.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
