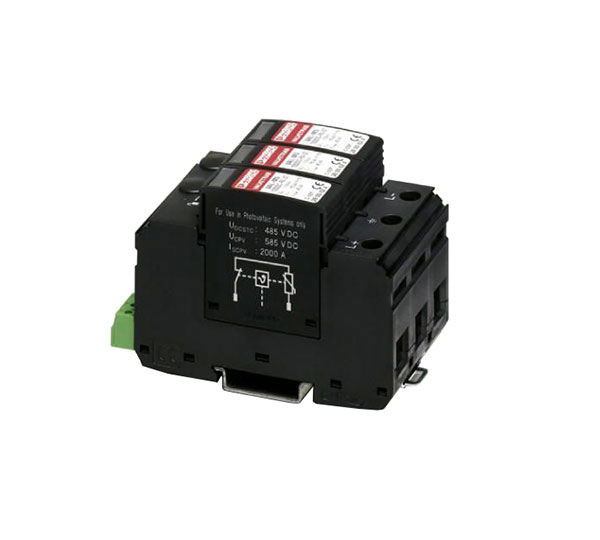

VAL-MS 1000DC-PV/2+V-FM
Surge protection device type 2
Art. no.
8223478
Manufacturer No.
2800627
Product details
Product information "VAL-MS 1000DC-PV/2+V-FM"
Surge arrester for 2-pos. isolated 1000 V DC voltage systems, for DIN rail mounting, 3-pos. base element with remote indication contact, three plug-in temperature-monitored protective elements, status message on each plug.
Technical details
| Surge protection type | type 2 |
|---|---|
| Protection degree | IP20 |
| Current type | DC |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | Phoenix Contact |
| Intrastat product number (HS-code) | 85363030 |
| Manufacturer item name | VAL-MS 1000DC-PV\/2+V-FM |
| Width incl. packaging (cm) | 5.90 |
|---|---|
| Length incl. packaging (cm) | 10.90 |
| Pack. material | cardboard box |
| Amount per big Box | 1 |
| Weight incl. packaging (Kg) | 0.333 |
| Height incl. packaging (cm) | 7.70 |
| Width without packaging (mm) | 53.00 |
|---|---|
| Height without packaging (mm) | 66.00 |
| Weight without packaging (kg) | 0.330 |
| Length without packaging (mm) | 99.00 |
| Warranty provider | Phoenix Contact |
|---|
