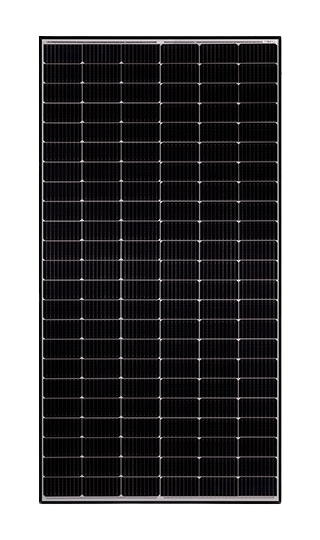

TARKA 126 VSMD 390W
Product information "TARKA 126 VSMD 390W"
including cable (ca. 120 cm) and MC4 EVO2 connector system
stable anodized black alu-frame
high-performance solar cells
version with 9 busbars
Carbon Footprint
Technical details
| Bifacial | no |
|---|---|
| Frame colour | black |
| Temperature coefficient Isc (%/C) | 0.0440 |
| Cell length (mm) | 83.000 |
| Length of cable plus (cm) | 120.00 |
| Max. reverse current (A) | 30 |
| Max. surface load capacity testload(Pa) | 2400 |
| Max. system voltage (V) | 1500 |
| Backsheet colour cell side | white |
| Max. wind speed capacity testload(Pa) | 2400 |
| Number of cells across | 6 |
| Number of cells (pcs) | 126 |
| Cell width (mm) | 166.000 |
| Nominal current Impp (A) | 15.96 |
| Temperature coefficient Uoc (%/C) | -0.2730 |
| Glass thickness front side (mm) | 3.20 |
| Power tolerance | +5 Wp |
| Frame type | framed |
| Module structure | glass-film |
| Cell type | monocrystalline |
| Number of cells along | 21 |
| Integrated module optimization | no |
| Protection degree | IP68 |
| Power rating Pmax (Wp) | 390 |
| Module efficiency (%) | 20.40 |
| Connector type | MC4 Evo 2 |
| Temperature coefficient Pmpp (%/C) | -0.3450 |
| Nominal voltage Umpp (V) | 24.44 |
| Open circuit voltage Uoc (V) | 29.08 |
| Length of cable minus (cm) | 120.00 |
| Busbars (pcs) | 9 |
| Cell cut | half cut |
| Short circuit current Isc (A) | 16.78 |
| Intrastat country of origin | France |
|---|---|
| Manufacturer item name | TARKA 126 VSMD |
| Manufacturer | Voltec Solar |
| Certificate 1 | IEC/TÜV |
| Intrastat product number (HS-code) | 85414300 |
| Certificate 2 | Protection Class 2 |
| Amount Pal. p. Cont. | 28 |
|---|---|
| Pal. dim. LxBxH (mm) | 1860x1060x1271 |
| Weight incl. packaging (Kg) | 21.200 |
| Width incl. packaging (cm) | 104.20 |
| Height incl. packaging (cm) | 3.50 |
| Amount p. Cont. | 896 |
| Pal. weight (kg) | 713.00 |
| Amount per Pallet | 32 |
| Length incl. packaging (cm) | 183.50 |
| Weight without packaging (kg) | 21.200 |
|---|---|
| Height without packaging (mm) | 35.00 |
| Width without packaging (mm) | 1042.00 |
| Length without packaging (mm) | 1835.00 |
| Product warranty (yr) | 20 |
|---|---|
| Performance warranty (yr) | 25 |
| Warranty provider | Voltec Solar |
| Linear degression p.a. in % | 0,5 |
| Initial % for linear warranty | 98 |
