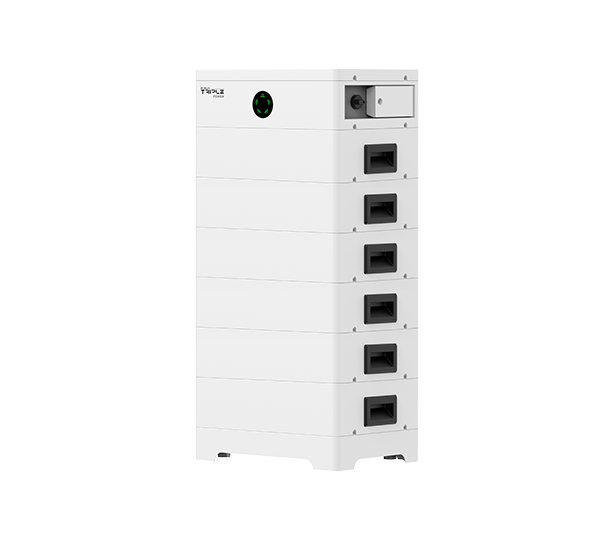

T-BAT-SYS-HV-S15
HV-Speichersystem
Art. no.
8255577
Product details
Product information "T-BAT-SYS-HV-S15"
ATTENTION:
UN 3480 lithium-ion batteries, 9, (E)
Transport category 2
Scope of delivery:
1 x SBA SOLAX MASTER BOX MCS0800 (8255372)
6 x SB SOLAX T-BAT-SYS-HV-S2.5 (8255103)
Downloads
-
MASTER BOX MCS08008255372
-
T-BAT-SYS-HV-S2.58255103
Technical details
| Nominal voltage DC (V) | 307.20 |
|---|---|
| Protection degree | IP65 |
| Usable capacity (kWh) | 13.80 |
| Max. output current discharging (A) | 45.00 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Max. output current charging (A) | 45.00 |
| Intrastat country of origin | China |
|---|---|
| Hazardous goods transportation category | 2 |
| Manufacturer | SolaX Power |
| Hazardous goods description | LITHIUM ION BATTERIES |
| Hazardous goods Weight (net) (kg) | 105.600 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Hazardous goods class | 9 |
| Manufacturer item name | T-BAT-SYS-HV-S2.5*MCS0800 |
| Hazardous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 221.000 |
|---|
| Weight without packaging (kg) | 178.000 |
|---|
| Warranty provider | SolaX Power |
|---|
