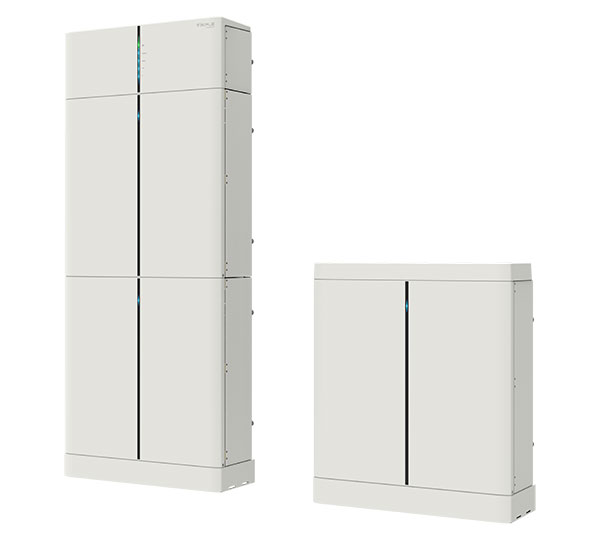

T-BAT H 9.0 V2
Product information "T-BAT H 9.0 V2"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
***from the 2nd storage module on another tower has to be built***
With the Solax T-BAT H 3.0 high-voltage battery, ideal storage sizes up to 12.0 kWh can be assembled for the residential sector. Thanks to the individual capacity of 3.0 kWh, this can be done in small steps and with a precise fit. With a depth of only 148 mm, the storage unit can be installed anywhere. And in combination with the Solax Mate Box for automatic backup power switching, even as a complete unit including inverter.
Product advantages:
• Proven, ultra-flat stack design
• Cascadable up to 4 battery modules
• Updates and diagnostics via the inverter
Product Features Storage:
• Battery capacity (usable): 8.3 kWh
• Time window extension: up to 1 year
• Cascadable: up to 4 battery modules
• Cell chemistry: LFP
• Rated voltage: 270 - 348
• Protection class: IP65
• Dimensions: 1118 + 572 x 482 x 148 mm (H x W x D)
• Weight: BMS + base: 7.5 kg, 3 x storage 34.5 kg each
Scope of delivery:
• 1 x Solax MC0600 BCU + base (item 8254795)
• 3 x Solax HV10230 storage module (item 8252297)
• 1 x Solax accessories T-BAT H 3.0 (item 8246193)
• 1 x Solax T-BAT H 3.0 connection cable 1.8m (item 8246194)
Downloads
-
MASTER BOX MC0600 V1.01 (T30)8254795
-
TRIPLE POWER BATTERY T30 3,0 kWh V28252297
Technical details
| Cell chemistry | LFP |
|---|---|
| Usable capacity (kWh) | 8.30 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Intrastat country of origin | China |
|---|---|
| Hazardous goods Weight (net) (kg) | 103.500 |
| Hazardous goods transportation category | 2 |
| Manufacturer | SolaX Power |
| Hazardous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Hazardous goods class | 9 |
| Manufacturer item name | T-BAT H 9.0 |
| Hazardous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 149.950 |
|---|
| Weight without packaging (kg) | 122.450 |
|---|
