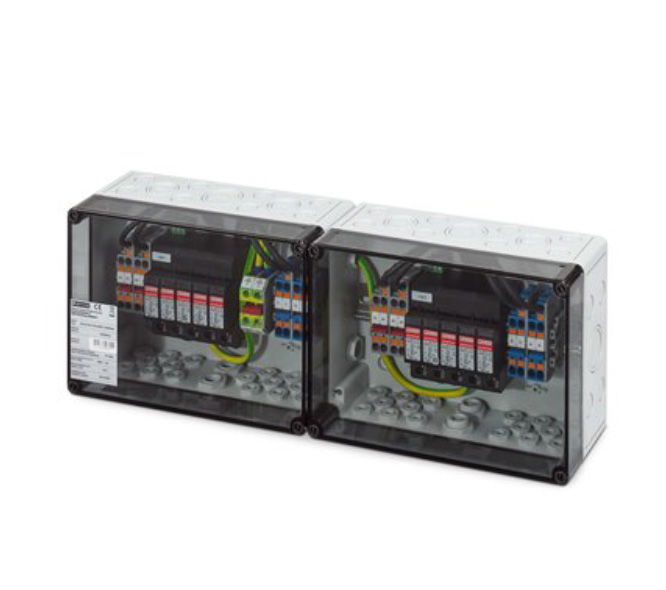

Surge protection box 4 MPPT, type 1+2
Product information "Surge protection box 4 MPPT, type 1+2"
Many inverter manufacturers integrate the required overvoltage protection into their devices in order to reduce installation work and costs. However, some structural conditions still require a separate and external solution. For example, in buildings with external lightning protection, this should be placed where the DC lines enter the building. This large version is ideal for inverters with the same number of MPPT.
Product advantages:
• Compact solution for inverters with 4 MPPT
• 2 input/output terminals per MPPT
• Up to 40A per MPPT / 20A per string
• Exchangeable plug-in elements
Product features:
• Max. DC no-load voltage: 1100 V
• Number of MPPT: 4
• DC connection: spring terminals
• String cable cross-section: 4 – 6 mm²
• Cable cross-section PE: 2 x 16 mm²
• Protection class: IP 65
• Dimensions: 2 housings, each 180 x 508 x 111 mm (HxWxD)
• Weight: 6.0 kg each
Technical details
| Protection degree | IP65 |
|---|---|
| Number of independent MPPT (pcs) | 4 |
| Max. input voltage DC (V) | 1000.00 |
| Min. temperature ambient (°C) | -20 |
| DC connector type | screw-type terminal |
| Max. number of string outputs (pcs) | 8 |
| Amount connected phases | 2 |
| Surge protection DC | type 1 and type 2 |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer | Phoenix Contact |
| Manufacturer item name | SOL-SC-2ST-0-DC-4MPPT-1000EQSE |
| Intrastat product number (HS-code) | 85371098 |
| Connection type | DC |
| Amount per Pallet | 20 |
|---|---|
| Weight incl. packaging (Kg) | 6.000 |
| Height without packaging (mm) | 111.00 |
|---|---|
| Width without packaging (mm) | 180.00 |
| Length without packaging (mm) | 508.00 |
| Weight without packaging (kg) | 6.000 |
