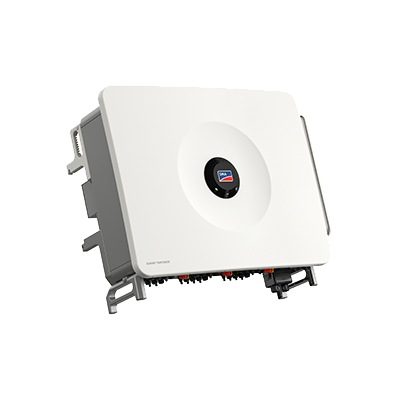

Sunny Tripower 125-70, string inverter
Product information "Sunny Tripower 125-70, string inverter"
The Sunny Tripower 125 is the new major building block for the SMA Commercial Energy Solution.
Practical key data and comprehensive equipment enable highly efficient and economical systems in all application segments. From use as a single device to megawatt systems. The certification ranges from VDE-AR-N 4105 to 4110 and 4120. 12 MPP trackers, ArcFix arc detection, overvoltage protection, I-V characteristic curve - all optimized for function and safety.
Product advantages:
• 30 A input current per MPPT (15 A per string connection)
• Arc protection function SMA ArcFix
• DC type 1+2 and AC type 2 overvoltage protection
• Intelligent I-V generator diagnostics
• Control of the grid relays for central NA protection possible
• Side AC connection for ideal accessibility
Product features:
• AC power: 125.0 kW
• AC connection: 400 V, 3-phase
• Number of MPPT: 12
• Connections per MPPT: 2
• DC connector: SUNCLIX
• Communication: 2 x Ethernet, WLAN
• Interfaces: 4 x DI (for FRE), 2 x quick stop, multifunction relay
• Protection class: IP65
• Cooling: active
• Dimensions: 795 x 1020 x 360 mm (H x W x D)
• Weight: 96.0 kg
Technical details
| Topology | transformerless |
|---|---|
| Max. input current DC (A) total | 360.00 |
| Interface 2 | W-Lan |
| UI curve diagnosis | yes |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Min. voltage range input (V) | 180 |
| Start input voltage (V) | 200 |
| European efficiency (%) | 98.10 |
| Total number of string inputs | 24 |
| Max. generator power DC (kWp) | 187.50 |
| Surge protection AC | type 2 |
| Interface 1 | Ethernet |
| Rapid shutdown | no |
| Number of independent MPPT (pcs) | 12 |
| Max. short circuit current per MPPT (A) | 40 |
| Max. AC power (kVA) | 125.00 |
| Step-Up converter | yes |
| Display | w/o display |
| Degree of protection IP | IP65 |
| MPP min. voltage range input (V) | 180.00 |
| Max. efficiency (%) | 98.40 |
| Integrated DC switch | yes |
| Max. input current per MPPT (A). | 30 |
| Offgrid usable | no |
| AC nominal power (kW) | 125.00 |
| Max. input voltage DC (V) | 1100.00 |
| Decibel | 71 |
| Contact ripple control receiver | yes |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Max. short circuit current (A) total | 480.00 |
| Shadow management | yes |
| MPP max. voltage range input (V) | 1000.00 |
| DC connector type | SUNCLIX |
| Max. output current (A) | 181.10 |
| Surge protection DC | type 1 and type 2 |
| String fuses | not included |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SMA |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer item name | Sunny Tripower 125 |
| Pal. dim. LxBxH (mm) | 1120x905x627 |
|---|---|
| Height incl. packaging (cm) | 62.70 |
| Width incl. packaging (cm) | 90.50 |
| Amount p. Cont. | 104 |
| Amount per Pallet | 1 |
| Length incl. packaging (cm) | 112.00 |
| Weight incl. packaging (Kg) | 130.000 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 130.00 |
| Width without packaging (mm) | 1020.00 |
|---|---|
| Height without packaging (mm) | 360.00 |
| Length without packaging (mm) | 795.00 |
| Weight without packaging (kg) | 96.000 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 5 |
