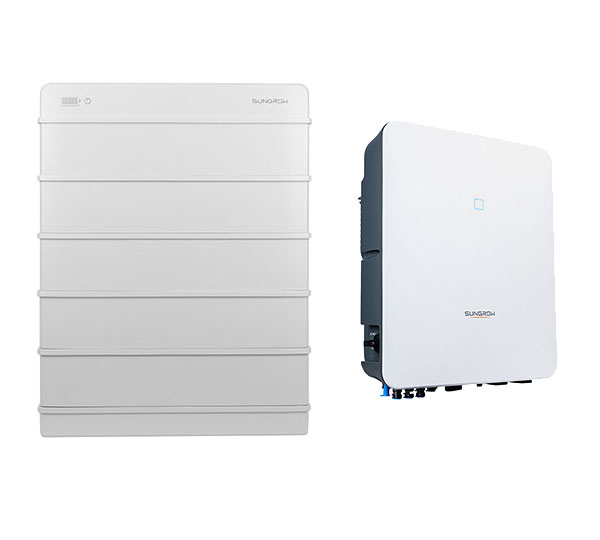

Sungrow SBR160 V13.2 + SH10.0RT-20-V11
Product information "Sungrow SBR160 V13.2 + SH10.0RT-20-V11"
DANGER:
UN 3480 Lithium Ion Batteries, 9, (E)
Transport category 2
This complete package from Sungrow contains the latest versions of the SH Hybrid series and the SBR high-voltage battery. In addition to increasing the DC input current for current modules, the EV charger from Sungrow can finally be combined with it again. The previous difficulties with the different versions of the SBR memory have finally been resolved with the new V13.2. Ready, steady - Sungrow.
Product advantages:
• Suitable for powerful modules
• Compatible with Sungrow EV Charger
• Memory expandable indefinitely
• Up to 5 systems in parallel operation
• 2510-50 certified battery safety
Product features system:
• AC power: 10.0 kW
• Number of MPPT: 2
• DC input current: 27.0 A (MPPT 2)
• AC connection: 400V, 3-phase
• Communication: Wifi, LAN, RS485, CAN, 4 x DI (FRE), 1 x DO (WP)
• Protection class: IP65
• Cooling: passive
• Dimensions: 540 x 470 x 170 mm (L x W x H)
• Weight: 27.0 kg
• Guarantee: 10 years
• Including WiNet Dongle and Smart Meter
Product features memory:
• Battery capacity (usable): 16.0 kWh
• Time window extension: unlimited
• Cell chemistry: LFP
• Rated voltage: 320V
• Protection class: IP55
• Dimensions: 805 x 625 x 330 mm (HxWxD)
• Weight: BCU 15.0 kg, 5 x accumulators each 33.0 kg
Conclusion:
Everything included, ready-to-use, flexible and expandable.
Scope of delivery:
• 1 x Sungrow SH10.0RT-20-V11 Hybrid WR, incl. WiNet dongle and meter
(Item 8254117)
• 1 x Sungrow SBR Battery Accessory Set System (item 8251204)
• 5 x Sungrow SBR V13.2 memory module (Item 8254571)
Downloads
-
SBR BATTERY MODULE PREMIUM 3,2 KWH V13.28254571
-
SBR BATTERY PREMIUM ACCESSORIES8251204
-
SH10.0RT-20-V118254117
Technical details
| Topology | transformerless |
|---|---|
| Start input voltage (V) | 250 |
| Max. nominal charging power (kW) | 9.60 |
| Max. input current per MPPT (A). | 27,0\/13,5 |
| Number of independent MPPT (pcs) | 2 |
| AC nominal power (kW) | 10.00 |
| Max. output current (A) | 15.20 |
| Max. short circuit current (A) total | 54.00 |
| Max. input current DC (A) total | 40.50 |
| Max. input voltage DC (V) | 1000.00 |
| Commercial system | no |
| Surge protection AC | type 2 |
| Max. AC power (kVA) | 10.00 |
| Max. discharging power (kW) | 9.60 |
| MPP max. voltage range input (V) | 950.00 |
| Capacity extendable later | yes without restriction |
| European efficiency (%) | 97.90 |
| Max. generator power DC (kWp) | 15.00 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Max. efficiency (%) | 98.40 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Protection degree | IP55 |
| Total number of string inputs | 3 |
| Surge protection DC | type 2 |
| DC connector type | MC4 connectable |
| Amount connected phases | 3 |
| Usable capacity (kWh) | 16.00 |
| Max. short circuit current per MPPT (A) | 36,0\/18,0 |
| Hazardous goods transportation category | 2 |
|---|---|
| Hazardous goods description | LITHIUM ION BATTERIES |
| Hazardous goods Weight (net) (kg) | 165.000 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | Sungrow |
| Hazardous goods class | 9 |
| Manufacturer item name | SBR160 V13.2*SH10.0RT-20-V11 |
| Hazardous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 240.000 |
|---|
| Weight without packaging (kg) | 207.000 |
|---|
