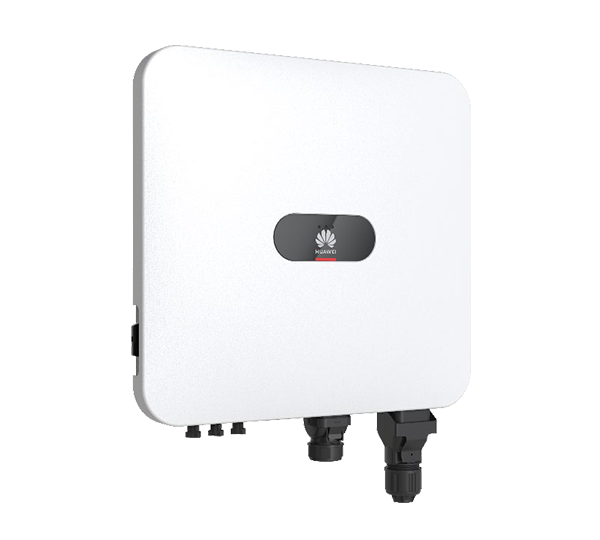

SUN5000-8K-MAP0 (only fully optimized)
Product information "SUN5000-8K-MAP0 (only fully optimized)"
The devices of the new SUN5000 series from Huawei must always be fully equipped with optimisers. Operation is not possible without an optimiser or only with partial optimisation.
The global manufacturer Huawei has been successfully operating in the photovoltaic and storage market for years. The new MAP0 series of hybrid inverters from 5 to 12 kW can also implement a genuine 3-phase backup solution in addition to the proven standards. The automatically switching Smart Guard-63A-T0 Box is installed in the main supply line for this purpose. The necessary storage power is supplied by the LUNA S0 or S1. The SUN5000 version of the MAP0 series enables additional safety features such as continuous AFCI arc detection and fast shutdown thanks to the general full optimisation.
Product advantages:
- AFCI + RSD through optimiser
- Asymmetrical power output possible
- Full backup possible with Huawei Smart Guard-63A-T0
Product features:
- AC power: 8.0 kW
- Number of MPPT: 2
- Overvoltage protection: Type 2 AC + DC
- AC connection: 3-phase
- Communication: RS485, WLAN / LAN with dongle
- Protection class: IP66
- Cooling: passive
- Dimensions: 460 x 490 x 130 mm (H x W x D)
- Weight: 21.0 kg
Compatible optimisers: SUN2000-450W-P2, SUN2000-600W-P, MERC-600W-PA0
Technical details
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 14.60 |
| Max. AC power (kVA) | 8.80 |
| Max. input current per MPPT (A). | 16 |
| Interface 2 | W-Lan |
| Min. temperature ambient (°C) | -25 |
| Backup system full | yes with supply |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Total number of string inputs | 2 |
| Max. input current DC (A) total | 32.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. efficiency (%) | 98.60 |
| European efficiency (%) | 98.00 |
| Display | w/o display |
| MPP min. voltage range input (V) | 160.00 |
| Backup system light | yes with supply |
| Max. short circuit current per MPPT (A) | 22 |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| Start input voltage (V) | 160 |
| AC nominal power (kW) | 8.00 |
| Contact ripple control receiver | yes |
| Arc Fault Circuit Interrupter | yes |
| MPP max. voltage range input (V) | 1000.00 |
| Max. output current (A) | 13.30 |
| Max. short circuit current (A) total | 44.00 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Huawei |
| Manufacturer item name | SUN5000-8K-MAP0 |
| Amount per Pallet | 16 |
|---|---|
| Pal. dim. LxBxH (mm) | 1250x1200x1200 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 23.700 |
| Height without packaging (mm) | 130.00 |
|---|---|
| Weight without packaging (kg) | 21.000 |
| Width without packaging (mm) | 460.00 |
| Length without packaging (mm) | 490.00 |
| Product warranty (yr) | 5 |
|---|---|
| Warranty provider | Huawei |
