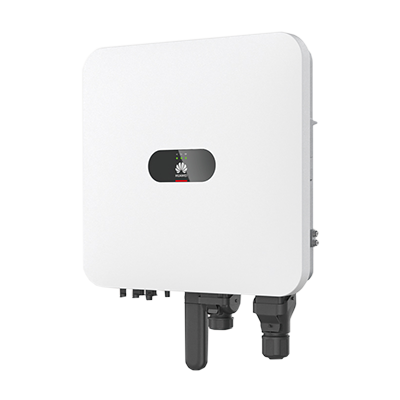

SUN2000-5K-MAP0
Product information "SUN2000-5K-MAP0"
The global manufacturer Huawei has been operating successfully in the photovoltaic and storage market for many years. This is also reflected in its wide range of inverters for every application. Whether XXL large-scale systems or sophisticated complete systems with storage and intelligent accessories for home use. The new series of hybrid inverters from 5 to 12 kW can also implement a genuine 3-phase backup solution in addition to the proven standards. The automatically switching Smart Guard-63A-T0 Box is installed in the main supply line for this purpose. The necessary storage power is provided by the LUNA S0 or S1 series.
Product benefits:
- 16.0 A input current per MPPT
- Asymmetrical power output possible
- Full backup possible with Huawei Smart Guard-63A-T0
- Also compatible with Huawei optimisers*
Product features:
- AC power: 5.0 kW
- Number of MPPT: 2
- Overvoltage protection: Type 2 AC + DC
- AC connection: 3-phase
- Communication: RS485, WLAN / LAN with dongle
- Protection class: IP66
- Cooling: passive
- Dimensions: 460 x 490 x 130 mm (H x W x D)
- Weight: 21.0 kg
*Compatible with SUN2000-450W-P2, SUN2000-600W-P, MERC-600W-PA0
Technical details
| Topology | transformerless |
|---|---|
| Max. input current per MPPT (A). | 16 |
| Backup system full | yes with supply |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Total number of string inputs | 2 |
| Max. generator power DC (kWp) | 9.00 |
| Max. input current DC (A) total | 32.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Battery connection | DC |
| AC nominal power (kW) | 5.00 |
| Min. voltage range input (V) | 160 |
| European efficiency (%) | 97.50 |
| Min. temperature ambient (°C) | 25 |
| Display | w/o display |
| Max. output current (A) | 8.30 |
| Max. efficiency (%) | 98.40 |
| MPP min. voltage range input (V) | 160.00 |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| Start input voltage (V) | 160 |
| Contact ripple control receiver | yes |
| Grid protection | yes |
| DC connector type | H4Amphenol |
| Arc Fault Circuit Interrupter | yes |
| Max. AC power (kVA) | 5.50 |
| Decibel | 29 |
| MPP max. voltage range input (V) | 1000.00 |
| Max. short circuit current (A) total | 22.00 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer | Huawei |
| Manufacturer item name | SUN2000-5K-MAP0 |
| Width incl. packaging (cm) | 460.00 |
|---|---|
| Pal. dim. LxBxH (mm) | 1220x1150x1230 |
| Amount per Pallet | 16 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 23.000 |
| Height incl. packaging (cm) | 131.00 |
| Length incl. packaging (cm) | 490.00 |
| Height without packaging (mm) | 130.00 |
|---|---|
| Weight without packaging (kg) | 21.000 |
| Width without packaging (mm) | 460.00 |
| Length without packaging (mm) | 490.00 |
| Warranty provider | Huawei |
|---|
