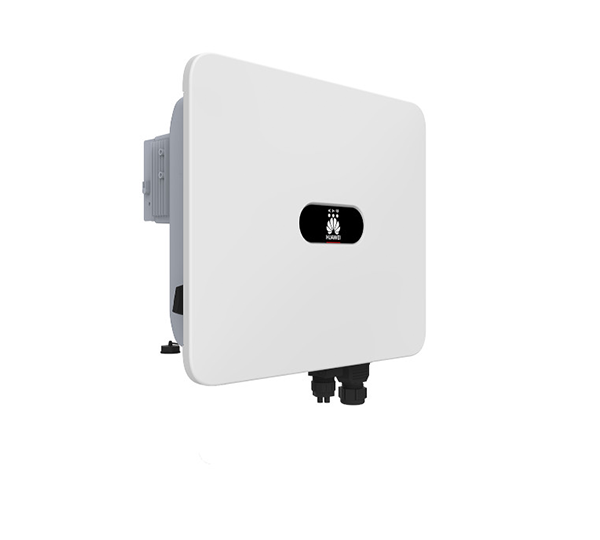

SUN2000-20 K-MB0
Product information "SUN2000-20 K-MB0"
And it's time for the next round of Huawei Smart Energy Controllers, or in short - the large hybrids. The new MB0 series seamlessly follows the small M1 series with power classes from 12 to 25 kW. Proven features such as integrated overvoltage protection, arc detection and compatibility with Huawei's own optimisers are of course included. As well as two separate battery connections, which enable the appropriate storage combinations in these power classes. The well-known LUNA battery with 5 kWh (S0 series) will soon be joined by its big sister with 7.0 kWh (S1 series).
Product advantages:
- High DC input current
- 2 battery connections *
- Integrated arc detection
- Compatible with all new Huawei optimisers *
Product features:
- AC power: 20.0 kW
- Number of MPPT: 2
- Number of Bat-connectors: 2
- Max- charging power: 22,0kW
- Compatible storage units: LUNA2000 S0 + S1
- AC connection: 3-phase
- Overvoltage protection: AC + DC type 2
- Communication: RS485, Wifi / LAN (optional), 4G / 3G / 2G (optional), EMMA (optional, Q1/24)
- Protection class: IP66
- Cooling: active
- Dimensions: 460 x 546 x 228 mm (H x W x D)
- Weight: 21.0 kg
*compatible with
Optimiser: SUN2000-450W-P2, SUN2000-600W-P, MERC-110W-P, MERC-1300W-P
Memory: LUNA2000 S0 + S1
Technical details
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 30.00 |
| DC connector type | MC4 |
| Max. input current DC (A) total | 60.00 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| European efficiency (%) | 98.10 |
| Backup system full | no |
| Charging voltage (V) | 600 - 980 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| Battery connection | AC/DC |
| Rapid shutdown | no |
| Max. short circuit current per MPPT (A) | 40 |
| Display | w/o display |
| Battery voltage | High Voltage |
| Min. voltage range input (V) | 480 |
| AC nominal power (kW) | 20.00 |
| Max. efficiency (%) | 98.40 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Max. input current per MPPT (A). | 30 |
| Backup system light | yes with supply |
| Max. AC power (kVA) | 22.00 |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| Grid protection | yes |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Max. output current (A) | 33.60 |
| MPP max. voltage range input (V) | 1000.00 |
| Max. short circuit current (A) total | 80.00 |
| String fuses | not included |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Huawei |
| Manufacturer item name | SUN2000-20K-MB0 |
| Width incl. packaging (cm) | 473.00 |
|---|---|
| Length incl. packaging (cm) | 516.00 |
| Amount per Pallet | 12 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 340.00 |
| Height incl. packaging (cm) | 232.00 |
| Weight incl. packaging (Kg) | 26.000 |
| Pal. dim. LxBxH (mm) | 1220x1150x1210 |
| Height without packaging (mm) | 228.00 |
|---|---|
| Weight without packaging (kg) | 21.000 |
| Length without packaging (mm) | 546.00 |
| Width without packaging (mm) | 460.00 |
| Warranty provider | Huawei |
|---|---|
| Product warranty (yr) | 10 |
