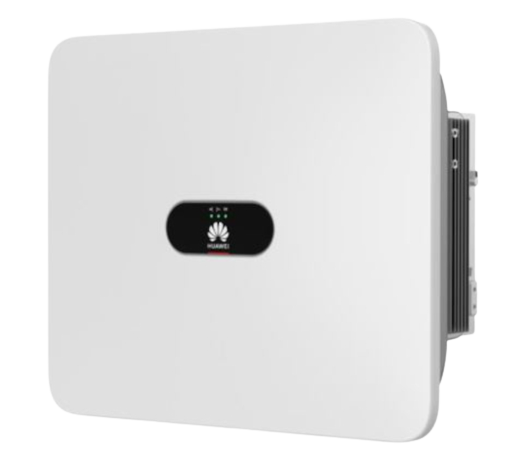

SUN2000-12KTL-M5, String Inverter
Product information "SUN2000-12KTL-M5, String Inverter"
Being lighter, slimmer, and smarter with a flick of the wrist - that's only possible if you're an inverter. Huawei's 12-25KTL devices have received the same update with the jump from the M2 to the M5 series. A 4 kg weight reduction, smaller dimensions, and higher input currents are all impressive. In addition, all new in-house optimizer models are available as optional accessories.
Product advantages:
• Higher DC input current
• Smaller and lighter
• Compatible with all new Huawei optimizers *
Product Features:
• AC power: 12.0 kW
• Number of MPPT: 2
• AC connection: 3-phase
• Communication: RS485, Wifi / LAN (optional), 4G / 3G / 2G (optional)
• Protection class: IP66
• Cooling: active
• Dimensions: 460 x 546 x 228 mm (H x W x D)
• Weight: 21.0 kg
*compatible with Huawei optimizer:
SUN2000-450W-P, SUN2000-450W-P2, SUN2000-600W-P, SUN2000-1300W-P, SUN2000-1100W-P
Technical details
| Topology | transformerless |
|---|---|
| DC connector type | MC4 |
| Max. input current DC (A) total | 60.00 |
| Min. voltage range input (V) | 200 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| Max. AC power (kVA) | 13.20 |
| AC nominal power (kW) | 12.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| Max. short circuit current per MPPT (A) | 40 |
| European efficiency (%) | 97.90 |
| Step-Up converter | yes |
| Display | w/o display |
| Max. efficiency (%) | 98.40 |
| Max. output current (A) | 18.20 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Max. input current per MPPT (A). | 30 |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| Max. generator power DC (kWp) | 18.00 |
| Contact ripple control receiver | yes |
| Grid protection | yes |
| Arc Fault Circuit Interrupter | yes |
| MPP max. voltage range input (V) | 1000.00 |
| Max. short circuit current (A) total | 80.00 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Huawei |
| Manufacturer item name | SUN2000-12KTL-M5 |
| Length incl. packaging (cm) | 60.00 |
|---|---|
| Amount per Pallet | 12 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 326.00 |
| Width incl. packaging (cm) | 56.00 |
| Pal. dim. LxBxH (mm) | 1220x1150x1090 |
| Weight incl. packaging (Kg) | 23.500 |
| Height incl. packaging (cm) | 30.50 |
| Length without packaging (mm) | 460.00 |
|---|---|
| Height without packaging (mm) | 228.00 |
| Weight without packaging (kg) | 21.000 |
| Width without packaging (mm) | 546.00 |
| Warranty provider | Huawei |
|---|---|
| Product warranty (yr) | 10 |
