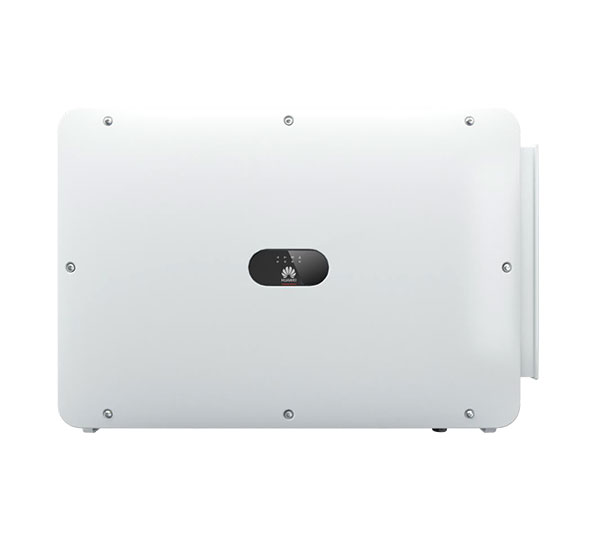

SUN2000-115KTL-M2
Three-phase inverter
Art. no.
8252842
Manufacturer No.
01074694-008
Product details
Product information "SUN2000-115KTL-M2"
***Communication with Internet using Smart Logger 3000A01EU (8233261) or with 4G/3G/2G using 4G dongle (8231549)***
***Smart Logger/dongle is not included in the scope of delivery!***
- 10 MPP Trackers
- 98.8% (@480V) Max. Efficiency
- String-level Management
- Smart I-V Curve Diagnosis Supported
- MBUS Supported
- Fuse Free Design
- Surge Arresters for DC & AC
- IP66 Protection
The scope of delivery includes:
- PV connectors
- Bluetooth-Dongle (for commissioning using the FusionSolar app)
- bracket
Technical details
| Topology | transformerless |
|---|---|
| Number of independent MPPT (pcs) | 10 |
| Min. voltage range input (V) | 200 |
| Max. output current (A) | 182.30 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Start input voltage (V) | 200 |
| Arc Fault Circuit Interrupter | no |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. short circuit current per MPPT (A) | 40 |
| Max. AC power (kVA) | 125.00 |
| Step-Up converter | yes |
| Display | w/o display |
| Max. generator power DC (kWp) | 115.00 |
| Max. short circuit current (A) total | 400.00 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Max. input current per MPPT (A). | 30 |
| Max. input current DC (A) total | 300.00 |
| Max. efficiency (%) | 98.80 |
| AC nominal power (kW) | 115.00 |
| Max. input voltage DC (V) | 1100.00 |
| Total number of string inputs | 20 |
| Surge protection DC | type 2 |
| Grid protection | yes |
| DC connector type | H4Amphenol |
| European efficiency (%) | 98.60 |
| MPP max. voltage range input (V) | 1000.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | SUN2000-115KTL-M2 |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Huawei |
| Height incl. packaging (cm) | 49.50 |
|---|---|
| Weight incl. packaging (Kg) | 106.000 |
| Amount per Pallet | 2 |
| Pal. dim. LxBxH (mm) | 1180x760x1139 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 136.00 |
| Width incl. packaging (cm) | 75.50 |
| Length incl. packaging (cm) | 115.00 |
| Width without packaging (mm) | 700.00 |
|---|---|
| Weight without packaging (kg) | 93.000 |
| Length without packaging (mm) | 1035.00 |
| Height without packaging (mm) | 365.00 |
| Product warranty (yr) | 5 |
|---|---|
| Warranty provider | Huawei |
