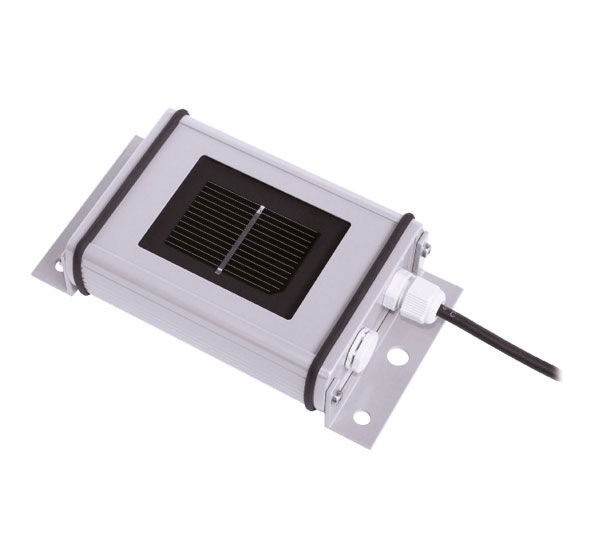

SOLAR IRRADIANCE SENSOR SI-I-420TC-T
+ integrated measurement of solar cell temperature
Art. no.
8228122
Manufacturer No.
1-01-050123
Product details
Product information "SOLAR IRRADIANCE SENSOR SI-I-420TC-T"
with external voltage supply from 12 to 28 VDC, 3 m cable, active temperature compensation and an output signal of 4 to 20 mA at 0 to 1500 W/m², with integrated measurement of the solar cell temperature (output signal 4 to 20 mA)
- Solar cell: Monocrystalline silicon (50 mm x 33 mm)
- Operating temperature: -35°C to 80°C
- Electrical connection: 3 m shielded cable
- Load impedance: minimal 20 O and maximal 400 O
- Case, protection mode: Powder-coated aluminium, IP 65
- Protocol: M&T (type -MT), MODBUS RTU (type -MB), CANopen CiA 487
- Interface: RS485 up to 38.4 kBaud, CAN up to 250 kBaud
- Galvanic isolation: 1.000 V between power supply and bus
- Irradiance Power Supply: 24 VDC (12 to 25 VDC)
- Irradiance Current Consumption: typic 10 to 46 mA
- Irradiance Tmperature compensation: Yes
- Irradiance Output Signal: 4 to 20 mA for 0 to 1,500 W/m²
- Cell Temperature Output Signal: 4 to 20 mA for -40 to +90°C
- Solar cell: Monocrystalline silicon (50 mm x 33 mm)
- Operating temperature: -35°C to 80°C
- Electrical connection: 3 m shielded cable
- Load impedance: minimal 20 O and maximal 400 O
- Case, protection mode: Powder-coated aluminium, IP 65
- Protocol: M&T (type -MT), MODBUS RTU (type -MB), CANopen CiA 487
- Interface: RS485 up to 38.4 kBaud, CAN up to 250 kBaud
- Galvanic isolation: 1.000 V between power supply and bus
- Irradiance Power Supply: 24 VDC (12 to 25 VDC)
- Irradiance Current Consumption: typic 10 to 46 mA
- Irradiance Tmperature compensation: Yes
- Irradiance Output Signal: 4 to 20 mA for 0 to 1,500 W/m²
- Cell Temperature Output Signal: 4 to 20 mA for -40 to +90°C
Technical details
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer item name | Si-I-420TC-T |
| Manufacturer | IMT-Technology |
| Intrastat product number (HS-code) | 90158020 |
| Weight incl. packaging (Kg) | 0.430 |
|---|---|
| Height incl. packaging (cm) | 6.00 |
| Width incl. packaging (cm) | 16.00 |
| Length incl. packaging (cm) | 26.00 |
| Weight without packaging (kg) | 0.350 |
|---|---|
| Width without packaging (mm) | 85.00 |
| Length without packaging (mm) | 155.00 |
| Height without packaging (mm) | 39.00 |
