SOL-SC-3ST-0-DC-1MPPT-1001
String combiner 1x3 strings, SPD Type I+II
Art. no.
8211052
Manufacturer No.
2404765
Product details
Product information "SOL-SC-3ST-0-DC-1MPPT-1001"

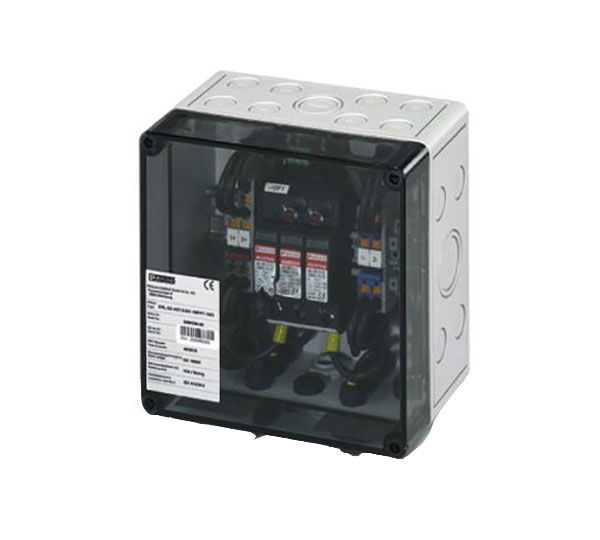

String combiner box for photovoltaic systems up to 1000 V DC for connecting 1x3 strings. With Surge protection Type I+II and SUNCLIX DC connectors for the input and output side. Mating connector and coupling are included.
Technical details
| Protection degree | IP65 |
|---|---|
| Max. input voltage DC (V) | 1000.00 |
| Min. temperature ambient (°C) | -20 |
| DC connector type | SUNCLIX |
| Surge protection DC | type 1 and type 2 |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer | Phoenix Contact |
| Intrastat product number (HS-code) | 85363030 |
| Manufacturer item name | SOL-SC-3ST-0-DC-1MPPT-1001 |
| Weight incl. packaging (Kg) | 2.210 |
|---|---|
| Height incl. packaging (cm) | 16.60 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 26.50 |
| Amount per big Box | 1 |
| Width incl. packaging (cm) | 34.00 |
| Height without packaging (mm) | 111.00 |
|---|---|
| Length without packaging (mm) | 180.00 |
| Width without packaging (mm) | 180.00 |
| Weight without packaging (kg) | 2.000 |
