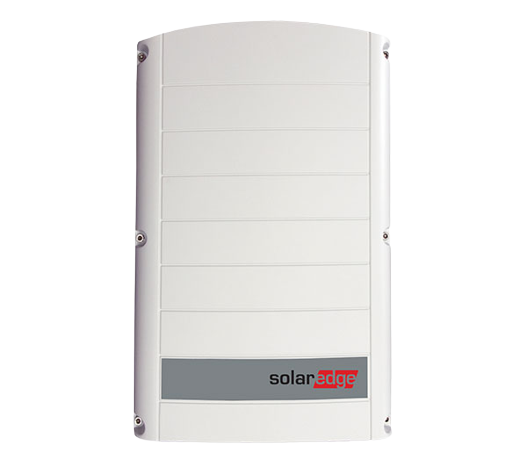

SE8K SETAPP
Inverter for Module Optimizer
Art. no.
8247980
Manufacturer No.
SE8K-RW0TEBEN4
Product details
Product information "SE8K SETAPP"
Specifically designed to work with power optimizers
- Noise level suitable for residential environments - No external fan
- Superior efficiency (98%)
- Small, lightest in its class, and easy to install
- Built-in module-level monitoring
- Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp
- Internet connection through Ethernet or Wireless (Wi-Fi, ZigBee Gateway, Cellular) (optional accessories required)
- IP65 - Outdoor and indoor installation
- Fixed voltage inverter for longer strings
- Smart Energy Management control (via optionally available ZigBee kit)
Technical details
| Topology | transformerless |
|---|---|
| DC connector type | MC4 |
| Max. generator power DC (kWp) | 12.00 |
| Min. temperature ambient (°C) | -40 |
| Step-Up converter | no |
| Protection degree | IP65 |
| Decibel | 40 |
| Total number of string inputs | 2 |
| Max. input voltage DC (V) | 900.00 |
| Interface 1 | RS485 |
| Display | w/o display |
| Max. efficiency (%) | 98.00 |
| Degree of protection IP | IP65 |
| AC nominal power (kW) | 8.00 |
| Interface 2 | Ethernet |
| Arc Fault Circuit Interrupter | yes |
| Max. input current DC (A) total | 18.00 |
| European efficiency (%) | 97.60 |
| Max. output current (A) | 13.00 |
| Max. AC power (kVA) | 8.00 |
| Intrastat country of origin | Israel |
|---|---|
| Manufacturer item name | Home Wave SE8K |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | SolarEdge |
| Amount per Pallet | 18 |
|---|---|
| Length incl. packaging (cm) | 70.00 |
| Height incl. packaging (cm) | 32.00 |
| Width incl. packaging (cm) | 40.00 |
| Weight incl. packaging (Kg) | 23.500 |
| Pal. dim. LxBxH (mm) | 1200x800x2080 |
| Weight without packaging (kg) | 16.400 |
|---|---|
| Length without packaging (mm) | 540.00 |
| Width without packaging (mm) | 315.00 |
| Height without packaging (mm) | 191.00 |
| Product warranty (yr) | 12 |
|---|---|
| Warranty provider | SolarEdge |
