Plenticore G3 BackUp Switch
Product information "Plenticore G3 BackUp Switch"

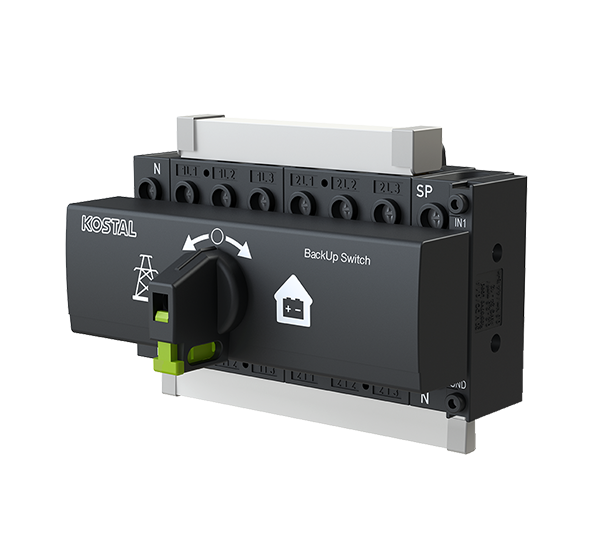

The Kostal BackUp Switch is the cost-effective option for implementing backup power operation with the Plenticore G3 series. With the manual changeover switch, selected consumer circuits up to 63 amps can be disconnected from the grid at all poles in the event of a grid failure and supplied via battery and PV. The compact design with only 8 DIN rail mounting units allows installation in the distribution board or directly next to the smart meter in the main supply line.
Product advantages:
• Switching of complete house connection possible
• Max. operating current 63 A
• Minimal space requirement on the top-hat rail with only 8 TE
Product features:
• AC mains connection: 400 V, 3-phase + N
• Grid type public grid: TN / TT
• Grid type off-grid: TN-S
• Max. operating current 63 A
• Max. cable cross-section: 16 mm²
• Width: 144 mm (8 TE)
• Can be used with Plenticore G3 series
Technical details
| Nominal current (A) | 63.00 |
|---|
| Intrastat country of origin | Germany |
|---|---|
| Intrastat product number (HS-code) | 85362010 |
| Manufacturer item name | Backup Switch G3 |
| Connection type | DC |
| Manufacturer | Kostal |
| Weight incl. packaging (Kg) | 0.570 |
|---|
| Height without packaging (mm) | 97.00 |
|---|---|
| Weight without packaging (kg) | 0.520 |
| Width without packaging (mm) | 102.00 |
| Length without packaging (mm) | 144.00 |
