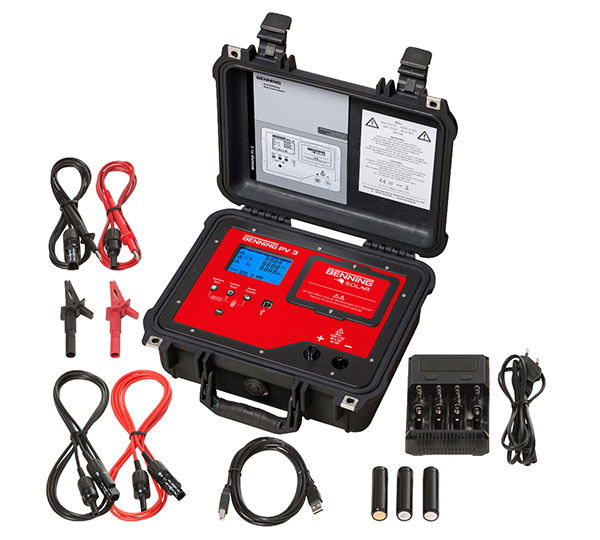

PV3
PV tester for PV systems with 1500 V technology
Art. no.
8231520
Manufacturer No.
050428
Product details
Product information "PV3"
Within the framework of commissioning tests and periodic inspection of grid-connected photovoltaic systems in compliance with VDE 0126-23 (DIN EN 62446), polarity tests as well as open-circuit voltage and shortcircuit current measurements of PV strings connected in parallel can be carried out, stored and documented safely and efficiently up to 1500 V/ 40 A.
With radio connection to the optional BENNING SUN 2, the existing radiation conditions (W/m²) as well as the PV module temperature and ambient temperature (°C) are automatically stored for each test procedure.
Measuring functions:
- polarity test of the PV generator/ PV cabling
- open-circuit voltage measurement for modern 1500 V DC systems
- short-circuit current measurement at PV strings up to 40 A DC
- insolation measurement (W/m2) and PV module temperature and ambient temperature (°C) by means of BENNING SUN 2 (optional)
With radio connection to the optional BENNING SUN 2, the existing radiation conditions (W/m²) as well as the PV module temperature and ambient temperature (°C) are automatically stored for each test procedure.
Measuring functions:
- polarity test of the PV generator/ PV cabling
- open-circuit voltage measurement for modern 1500 V DC systems
- short-circuit current measurement at PV strings up to 40 A DC
- insolation measurement (W/m2) and PV module temperature and ambient temperature (°C) by means of BENNING SUN 2 (optional)
Technical details
| Manufacturer item name | BENNING PV 3 |
|---|---|
| Intrastat product number (HS-code) | 90303370 |
| Manufacturer | BENNING |
| Intrastat country of origin | Great Britain |
| Length incl. packaging (cm) | 38.00 |
|---|---|
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 48.00 |
| Weight incl. packaging (Kg) | 6.700 |
| Height incl. packaging (cm) | 19.00 |
| Weight without packaging (kg) | 5.000 |
|---|
| Warranty provider | BENNING |
|---|
