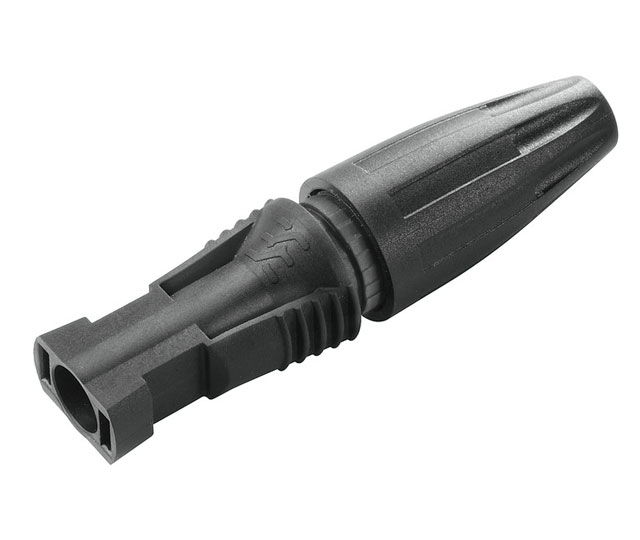

PV-STICK MALE CRIMPLESS (MINUS)
Plug-in connector, PUSH IN connection, pin
Art. no.
8226628
Manufacturer No.
1303490000
Product details
Product information "PV-STICK MALE CRIMPLESS (MINUS)"
Continuous operating temperature: -40 °C bis +85 °C
Protection degree: IP65, in closed state, IP2x open
Rated current: 30 A
Rated voltage: 1500 V DC (IEC)
Conductor cross-section: 4 mm² - 6 mm²
Outer cable diameter: 5,5 mm bis 7,5 mm
Cable type: 2 Pfg1169/08.07, EN 50618:2014
Pollution severity: 3 (2 within the sealed area)
Approvals: TÜV Rheinland (IEC 62852)
Protection degree: IP65, in closed state, IP2x open
Rated current: 30 A
Rated voltage: 1500 V DC (IEC)
Conductor cross-section: 4 mm² - 6 mm²
Outer cable diameter: 5,5 mm bis 7,5 mm
Cable type: 2 Pfg1169/08.07, EN 50618:2014
Pollution severity: 3 (2 within the sealed area)
Approvals: TÜV Rheinland (IEC 62852)
Technical details
| Cable outer diameter (mm) | 5.50 |
|---|---|
| Protection degree | IP65 |
| Cross-section (mm²) | 4.00 |
| Intrastat product number (HS-code) | 85359000 |
|---|---|
| Manufacturer item name | PV-STICK-VPE10 |
| Manufacturer | Weidmüller |
| Intrastat country of origin | Romania |
| Weight incl. packaging (Kg) | 0.020 |
|---|---|
| Amount per Bag | 10 |
| Height without packaging (mm) | 20.00 |
|---|---|
| Length without packaging (mm) | 89.00 |
| Weight without packaging (kg) | 0.020 |
| Width without packaging (mm) | 20.00 |
