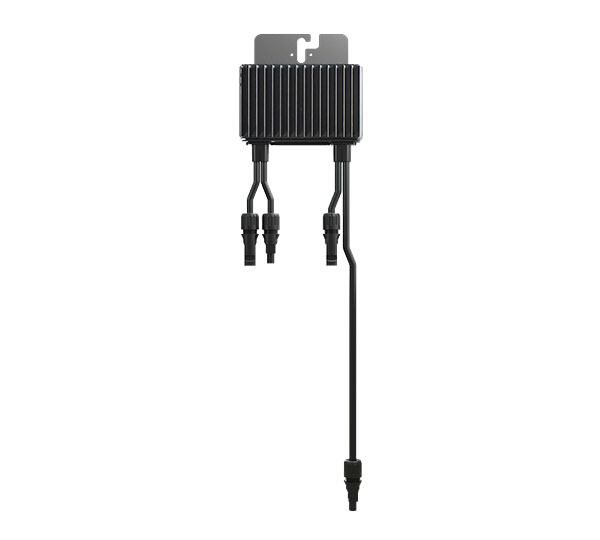

POWER OPTIMIZER S1000 LANDSCAPE (4,7m/1,3m)
Product information "POWER OPTIMIZER S1000 LANDSCAPE (4,7m/1,3m)"
SolarEdge's most advanced and cost-effective power optimizer for commercial and large-scale installations
Higher energy yields:
- High efficiency (99.5%) with module-level MPPT for maximized energy production, higher revenues and quick return on investment
- Supports high power and bifacial PV modules and high string current for more power per string
Maximum protection thanks to built-in security:
- Equipped with SafeDCTM to automatically reduce high DC voltage to a touch-safe level when the grid/inverter is switched off
- Includes SolarEdge Sense Connect, which enables continuous monitoring to detect overheating due to installation issues or connector wear
Lower system costs (BoS):
- The flexible system design enables maximum space utilization and up to twice as long string lengths, 50% fewer cables, fuses and GAK
- Supports serial connection of two PV modules with easy cable management and short installation time
Easier operation and maintenance:
- System monitoring at module level for pinpoint error detection and time-saving remote troubleshooting
- Output connector: MC4 pluggable
- Output cable length: 4.7 m (+), 0.1 m (-)
- Input cable length: 1.3 m
Technical details
| Length of cable output plus (cm) | 470.00 |
|---|---|
| DC connector type | MC4 |
| Max. input voltage DC (V) | 125.00 |
| MPP min. voltage range input (V) | 12.50 |
| Short circuit current Isc (A) | 20.00 |
| Length of cable output minus (cm) | 10.00 |
| Protection degree | IP68 |
| MPP max. voltage range input (V) | 105.00 |
| Rated input power (W) | 1100 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolarEdge |
| Manufacturer item name | S1000 for Europe |
| Intrastat product number (HS-code) | 90328900 |
| Width incl. packaging (cm) | 12.90 |
|---|---|
| Weight incl. packaging (Kg) | 1.190 |
| Height incl. packaging (cm) | 5.20 |
| Pack. material | cardboard box |
| Amount per Pallet | 420 |
| Length incl. packaging (cm) | 16.50 |
| Pal. dim. LxBxH (mm) | 1200x800x2180 |
| Amount per big Box | 10 |
| Weight without packaging (kg) | 1.064 |
|---|---|
| Length without packaging (mm) | 165.00 |
| Width without packaging (mm) | 129.00 |
| Height without packaging (mm) | 52.00 |
| Product warranty (yr) | 25 |
|---|---|
| Warranty provider | SolarEdge |
