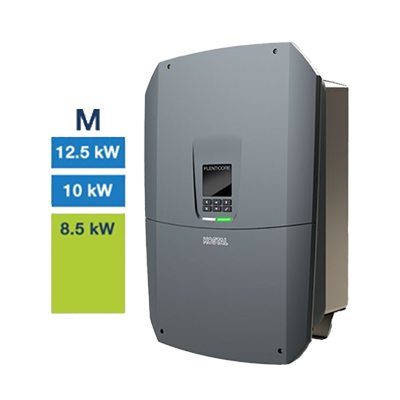

PLENTICORE G3 – M
Product information "PLENTICORE G3 – M"
The PLENTICOINs required for power and function activation must be ordered separately.
With the new PLENTICORE G3 series, KOSTAL is expanding its flexible portfolio centred around the PLENTICOIN. This in-house currency for activating device power and functions is also used here. The inverters are supplied in 3 device variants S, M and L with a basic output of 4 to 15 kW. PLENTICOINs can be used to activate 2 higher power classes, storage utilisation and the intelligent connection of the EV charger. At any time. The new device versions thus enable almost universal application freedom with reduced storage requirements.
Product benefits:
- Activate power and functions as required using PLENTICOINs
- 17 A input current per MPPT
- Full backup with switchover device
Product features:
- AC base power: 8.5 kW
- AC power extension level 1: 10.0 kW
- AC power extension stage 1: 12.5 kW
- AC connection: 3-phase
- Communication: Wifi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out
- Protection class: IP65
- Cooling: active
- Dimensions: 561 x 409 x 237 mm (H x W x D)
- Weight: 22.3 kg
Activation via PLENTICOINs:
General (all PLENTICORE plus series, MP plus series, Enector Wallbox):
- Activation of the storage function 3 PLENTICOINS
- Activation of the Wallbox Smart Features 2 PLENTICOINS
PLENTICORE G3 series:
- Increase one performance class (1 level) within the S/M/L 1 PLENTICOIN appliance series
- Maximum power increase (2 levels) within the S/M/L 1+1 PLENTICOIN appliance series
Technical details
| Topology | transformerless |
|---|---|
| Decibel | 39 |
| Surge protection DC | no |
| Interface 2 | W-Lan |
| Max. short circuit current per MPPT (A) | 23,8\/23,8\/42 |
| Backup system full | yes with supply |
| Backup system light | no |
| Protection degree | IP65 |
| Max. short circuit current (A) total | 89.60 |
| Display | with display |
| Max. input current DC (A) total | 64.00 |
| Arc Fault Circuit Interrupter | no |
| Number of independent MPPT (pcs) | 3 |
| Start input voltage (V) | 95 |
| Max. input voltage DC (V) | 1000.00 |
| Charging voltage (V) | 95-650 |
| Interface 1 | Ethernet |
| Min. voltage range input (V) | 75 |
| Battery connection | AC/DC |
| Rapid shutdown | no |
| Step-Up converter | yes |
| Surge protection AC | no |
| Charging current (A) | 30.00 |
| Min. temperature ambient (°C) | -20 |
| Max. output current (A) | 20.00 |
| Battery voltage | High Voltage |
| Max. efficiency (%) | 98.00 |
| Degree of protection IP | IP65 |
| Max. AC power (kVA) | 8.50 |
| Integrated DC switch | yes |
| MPP max. voltage range input (V) | 800.00 |
| Offgrid usable | no |
| Total number of string inputs | 3 |
| Max. generator power DC (kWp) | 12.75 |
| AC nominal power (kW) | 8.50 |
| Contact ripple control receiver | yes |
| Integrated AC switch | no |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| European efficiency (%) | 97.00 |
| MPP min. voltage range input (V) | 170.00 |
| Shadow management | yes |
| DC connector type | SUNCLIX |
| Max. input current per MPPT (A). | 17\/17\/30 |
| Intrastat country of origin | Germany |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer item name | PLENTICORE M G3 |
| Manufacturer | Kostal |
| Width incl. packaging (cm) | 48.50 |
|---|---|
| Pal. weight (kg) | 261.20 |
| Height incl. packaging (cm) | 29.00 |
| Pal. dim. LxBxH (mm) | 1300x800x1200 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 65.00 |
| Weight incl. packaging (Kg) | 23.600 |
| Amount per Pallet | 10 |
| Width without packaging (mm) | 409.00 |
|---|---|
| Length without packaging (mm) | 570.00 |
| Height without packaging (mm) | 237.00 |
| Weight without packaging (kg) | 21.600 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Kostal |
