Lynx D 5.0-10
Product information "Lynx D 5.0-10"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

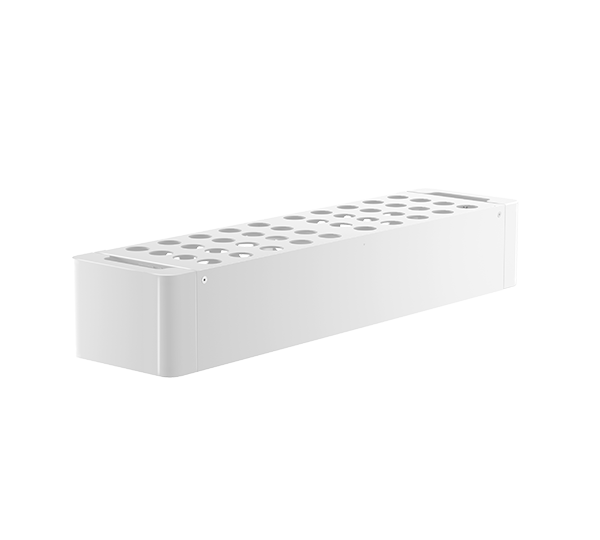

Depending on the desired setup, a base or a wall-mounted rack must be added to each tower.
A maximum of 4 storage modules can be stacked on top of each other. For > 4 modules, the system must be set up in two towers.
With the new Lynx D series, Goodwe is bringing a new player into its residential and small-commercial storage world. In addition to higher capacity per module and system, the integrated DC/DC converter enables the most flexible applications with just one battery per inverter. The BMS is now also included in every storage module, allowing optimal energy management and unlimited retrofitting. This eliminates the need for time-consuming preparation before adding an element. With up to 8 modules, a usable 40.0 kWh can be achieved.
Product advantages:
• High voltage level per module allows flexible applications
• Unlimited expansion thanks to integrated BMS
• up to 8 storage modules with a total of 40.0 kWh
Product features:
• Battery capacity (usable): 5.0 kWh
• Expansion time window: unlimited
• System structure: 1 to 8 units
• Charging power: 3.0 kW
• Cell chemistry: LFP
• Nominal voltage: 320 - 480 V
• Communication: CAN
• Cooling: passive
• Protection class: IP66
• Installation: floor or wall
• Dimensions: 380 x 700 x 170 mm (HxWxD)
• Weight: 52.0 kg
• Warranty: 10 years
Compatible inverter series: ET G2, ET Plus+, ET 15-30, ET 40-40, BT, EH Plus+, BH
Technical details
| Usable capacity (kWh) | 5.00 |
|---|---|
| Protection degree | IP66 |
| Cell chemistry | LFP |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Max. C-rate | 0.20 |
| Intrastat country of origin | China |
|---|---|
| Hazardous goods transportation category | 2 |
| Hazardous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer item name | LX D5.0-10 |
| Hazardous goods class | 9 |
| Hazardous goods packaging type | 4G |
| UN No. | 3480 |
| Hazardous goods Weight (net) (kg) | 52.000 |
| Height incl. packaging (cm) | 30.00 |
|---|---|
| Amount per Pallet | 6 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 56.400 |
| Width incl. packaging (cm) | 53.50 |
| Length incl. packaging (cm) | 78.50 |
| Pal. dim. LxBxH (mm) | 1110x825x142 |
| Length without packaging (mm) | 700.00 |
|---|---|
| Width without packaging (mm) | 380.00 |
| Weight without packaging (kg) | 52.000 |
| Height without packaging (mm) | 170.00 |
| Warranty provider | GoodWe |
|---|---|
| Product warranty (yr) | 10 |
