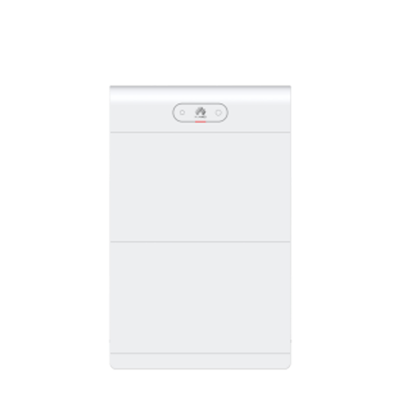

LUNA2000-14-S1
Product information "LUNA2000-14-S1"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
***LUNA2000 S0 series not compatible with S1***
The global manufacturer Huawei has been operating successfully in the photovoltaic and storage market for many years. This is reflected in a wide range of inverters from small to extra-large. The LUNA high-voltage storage series has also received a fresh addition with the new S1 line. More capacity and consequently higher charging performance have been combined with the proven LUNA DNA. Even simpler and faster installation thanks to the new plug-in system and flexible retrofitting via intelligent system control. In parallel operation with 2 towers, up to 41.4 kWh of usable storage capacity is available.
Product benefits:
- Can be extended indefinitely
- Up to 2 battery towers with a total of 41.4 kWh can be cascaded
- New plug-in system replaces manual wiring of the individual elements
- Certified battery safety in accordance with VDE 2510-50
Product features:
- Battery capacity (usable): 13.8 kWh
- Extension time window: unlimited
- Cascadable: up to 2 towers in parallel (41.4 kWh)
- Cell chemistry: LFP
- Charging power: 7.0 kW
- Protection class: IP66
- Dimensions: 870 x 590 x 255 mm (H x W x D)
- Weight: BMS + base: 12.0 kg, 2 x storage units 68.0 kg each
- Warranty: 15 years
Downloads
- Mounting Instructions English
- Datasheet English
- Operations manual English
- Cerificate English
- Warranty Terms English
- Declaration of Conformity English
-
LUNA2000-10KW-C1 Power Module8256565
-
LUNA2000-7-E18256564
Technical details
| Protection degree | IP66 |
|---|---|
| Usable capacity (kWh) | 13.80 |
| Discharging power (kW) | 7.00 |
| Cell chemistry | LFP |
| Min. temperature ambient (°C) | -20 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Charging power (kW) | 7.00 |
| Intrastat country of origin | China |
|---|---|
| Hazardous goods transportation category | 2 |
| Hazardous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | Huawei |
| Hazardous goods class | 9 |
| Hazardous goods Weight (net) (kg) | 148.000 |
| Manufacturer item name | LUNA2000-14-S1 |
| Hazardous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 168.000 |
|---|
| Height without packaging (mm) | 870.00 |
|---|---|
| Weight without packaging (kg) | 148.000 |
| Length without packaging (mm) | 590.00 |
| Width without packaging (mm) | 255.00 |
| Product warranty (yr) | 15 |
|---|---|
| Warranty provider | Huawei |
