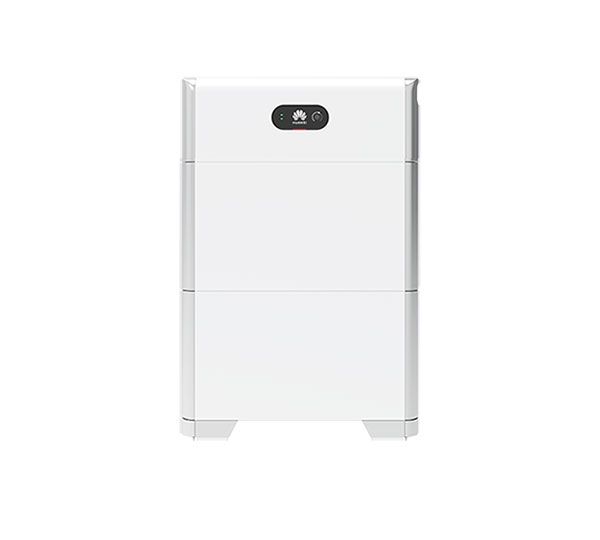

LUNA2000-10-S0 (10 kWh)
Set
Storage module with Lithium-Ion technology
Art. no.
8233896
Product details
Product information "LUNA2000-10-S0 (10 kWh)"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Note:
In the shopping cart, you have the option of removing individual components of the set from your order and replacing them with comparable products if necessary.
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Note:
In the shopping cart, you have the option of removing individual components of the set from your order and replacing them with comparable products if necessary.
- 100% Depth of Discharge
- Pack Level Energy Optimization
Flexible Investment:
- 5kWh Modular Design
- Scalable from 5 to 30 kWh
Safe & Reliable:
- Lithium Iron Phosphate (LFP) Cell
Easy Installation:
- 12 kg Power Module
- 50 kg Battery Module
Quick Commissioning:
- Automatically Detected in App
Perfect Compatibility:
- Compatible to Both Residential Single & Three Phase Inverter
- Battery usable energy: 10 kWh
- Max. output power: 5 kW
- Peak output power: 7 kW, 10 s
- Nominal voltage (single phase system/L1): 360 V
- Operating voltage range (single phase system/L1): 350 - 560 V
- Nominal voltage (three phase system/M1): 600 V
- Operating voltage range (three phase system/M1): 600 - 980 V
- Display: SOC status indicator, LED indicator
- Communication: RS485 / CAN (only for parallel operation)
- Operating temperature: -10°C ~ + 55°C
- Relative humidity: 5% ~ 95%
- Cooling: Natural convection
- Protection rating: IP 55
- Noise emission: <29 dB
- Cell technology: Lithium-iron phosphate (LiFePO4)
- Scalability: Max. 2 systems in parallel operation
- Compatible inverters: SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1
Downloads
- Cerificate English
- Warranty Terms English
- Operations manual English
- Datasheet English
- Mounting Instructions English
-
LUNA2000-5KW-C0 POWER MODULE8233894
-
LUNA2000-5-E0 (5 kWh) BATTERY MODULE8233893
Technical details
| Protection degree | IP65 |
|---|---|
| Min. temperature ambient (°C) | -10 |
| Cell chemistry | LFP |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 10.00 |
| Nominal voltage DC (V) | 360.00 |
| Discharging power (kW) | 5.00 |
| Charging power (kW) | 7.00 |
| Intrastat country of origin | China |
|---|---|
| Hazardous goods transportation category | 2 |
| Hazardous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer item name | LUNA2000-10-S0 |
| Manufacturer | Huawei |
| Hazardous goods class | 9 |
| Hazardous goods packaging type | 4G |
| Hazardous goods Weight (net) (kg) | 113.800 |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 128.000 |
|---|
| Weight without packaging (kg) | 113.800 |
|---|---|
| Width without packaging (mm) | 670.00 |
| Height without packaging (mm) | 150.00 |
| Length without packaging (mm) | 960.00 |
| Warranty provider | Huawei |
|---|---|
| Product warranty (yr) | 10 |
