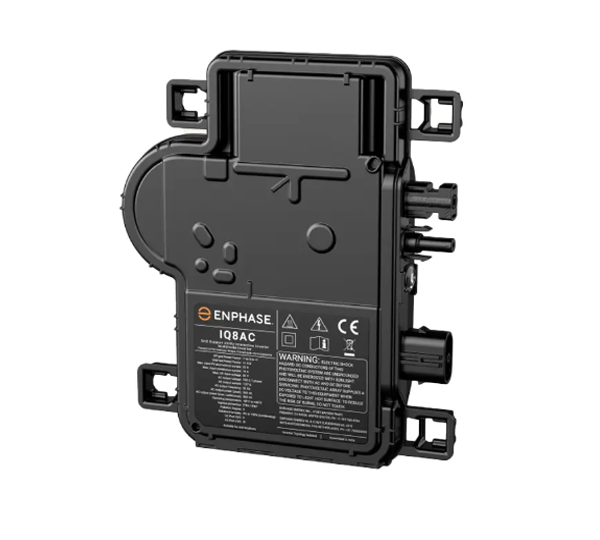

IQ8AC-72-M-INT
Product information "IQ8AC-72-M-INT"
The Enphase Envoy Gateway and the Q-Relay are mandatory for standard-compliant installation.
With the new IQ8 series from Enphase, all current high-performance modules with a nominal current of up to 14 amperes can be controlled in addition to the most diverse orientations and inclinations. In 3 performance classes from 480 to 560 Wp, small to large system constellations can be ideally equipped. With the tried and tested, pre-assembled AC connection cables in a wide range of variants, installation on the roof is quickly completed. The regulating heart of the system is still the Envoy Communication Gateway with a suitable Q relay for NA protection. The freely cascadable Encharge storage system completes the system.
Product advantages:
• Space-saving thanks to direct roof mounting
• DC input current up to 14 amps
• Visualization via web portal + app
Product features:
• AC Output Power: 366VA
• Mains connection: 230 V, 1-phase
• Max. DC rated current: 14.0 A
• Communication WR - logger: wireless via ZigBee
• Recording generation capacity: measured centrally with CTs
• Connector: Stäubli MC4
• Protection class: IP 67
• Cooling: passive
• Guarantee: 25 years
Technical details
| MPP min. voltage range input (V) | 28.00 |
|---|---|
| DC connector type | MC4 |
| Max. short circuit current (A) total | 25.00 |
| Degree of protection IP | IP67 |
| European efficiency (%) | 96.70 |
| Min. temperature ambient (°C) | -40 |
| Max. efficiency (%) | 97.40 |
| Topology | transformer |
| Step-Up converter | no |
| Max. AC power (kVA) | 0.37 |
| Start input voltage (V) | 22 |
| Arc Fault Circuit Interrupter | no |
| Protection degree | IP67 |
| Max. input current DC (A) total | 14.00 |
| Max. generator power DC (kWp) | 0.53 |
| Max. input voltage DC (V) | 60.00 |
| AC nominal power (kW) | 0.37 |
| Min. voltage range input (V) | 18 |
| Interface 1 | PLM |
| MPP max. voltage range input (V) | 45.00 |
| Max. output current (A) | 1.59 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | IQ8AC-72-M-INT |
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer | Enphase |
| Amount per Pallet | 756 |
|---|---|
| Weight incl. packaging (Kg) | 1.190 |
| Amount per big Box | 18 |
| Pal. dim. LxBxH (mm) | 1200x1000x2120 |
| Width without packaging (mm) | 175.00 |
|---|---|
| Weight without packaging (kg) | 1.100 |
| Length without packaging (mm) | 212.00 |
| Height without packaging (mm) | 30.00 |
| Warranty provider | Enphase |
|---|---|
| Product warranty (yr) | 25 |
