Home Storage 6.5 + Sunny Tripower SE 5.0
Product information "Home Storage 6.5 + Sunny Tripower SE 5.0"
***Alternatively to the self-assembly of the Com connection between inverter and Home Storage battery, the Com cable set (item 8255275) can also be used***
The base unit for the floor mounting of the storage (per tower) must be ordered separately if required.
The fist in the eye, like pot and lid - there are a few sayings that describe an ideal match. In our PV world, SMA is now adding "Smart Energy + Home Storage" to this list. Because the combination of the 1- and 3-phase hybrid series with the new high-voltage battery is a perfect match - a precision landing. The compact power packs shine with an integrated BMS and up to 8000 charging cycles for quick installation and intensive use. With up to 5 battery modules of 3.2 kWh each, a total of 16.4 kWh of usable storage power is available for every energy situation.
Product advantages:
• 1A networking through a uniform manufacturer
• Integrated AC + DC overvoltage protection type 2
• 8000 charging cycles and 10-year guarantee after registering the memory
Product features system:
• AC power: 5.0 kW
• Number of MPPT: 2
• Input Voltage: 210-800VDC
• AC connection: 3-phase
• Topology: transformerless
• Communication: WLAN, Ethernet, CAN
• Interfaces: 5 x DI (FRE), 1 x DO
• Protection class: IP65
• Cooling: passive
• Weight: 30.0 kg
• Dimensions: 500 x 598 x 173 mm (W x H x D)
Product features memory:
• Capacity (usable): 6.56 kWh
• Output voltage: 192V
• Max. charge/discharge current: 36 A
• Cell chemistry: LFP (lithium iron phosphate)
• Time window extension: up to 2 years
• Place of installation: indoor / outdoor
• Mounting: wall (included), floor (to be ordered separately)
• Protection class: IP65
• Cooling: passive
• Dimensions: 610 x 969 x 215 mm (W x H x D)
• Total weight: 76.0 kg
Conclusion:
"Everything from a single source" plus "SMA" now stands for a complete range and reliable quality.
Scope of delivery:

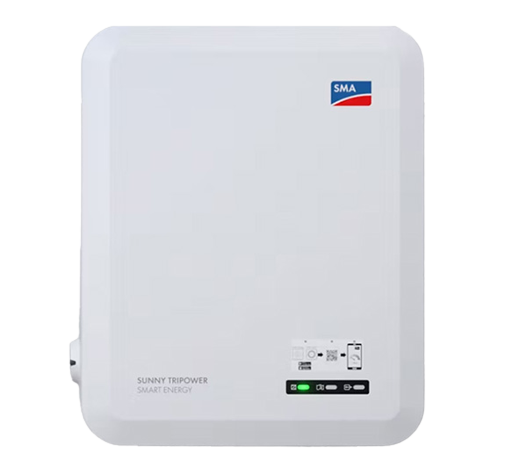

• 1 x SMA Sunny Tripower SE 5.0 (item 8250367)
• 1 x SMA Home Manager 2.0 (item 8226650)
• 2 x SMA Home Storage (item 8254631)
Downloads
-
SUNNY HOME MANAGER 2.0 (ETHERNET)8226650
-
Sunny Tripower 5.0 SE8250367
-
Home Storage 3.28254631
Technical details
| Topology | transformerless |
|---|---|
| Max. discharging power (kW) | 5.76 |
| Max. input current per MPPT (A). | 12,5\/12,5 |
| MPP min. voltage range input (V) | 210.00 |
| Protection degree | IP65 |
| Number of independent MPPT (pcs) | 2 |
| Max. short circuit current (A) total | 40.00 |
| Contact for self-consumption optimization (e.g. for heat pump) | 1 |
| Backup system full | no |
| Total number of string inputs | 2 |
| Max. input voltage DC (V) | 1000.00 |
| Commercial system | no |
| Surge protection AC | type 2 |
| AC nominal power (kW) | 5.00 |
| Capacity extendable later | yes with time restriction |
| Display | w/o display |
| Battery voltage | High Voltage |
| Start input voltage (V) | 180 |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 6.56 |
| Integrated DC switch | yes |
| MPP max. voltage range input (V) | 800.00 |
| Max. nominal charging power (kW) | 5.76 |
| Max. output current (A) | 7.60 |
| Surge protection DC | type 2 |
| Max. input current DC (A) total | 25.00 |
| Contact ripple control receiver | yes |
| Backup system light | yes |
| Max. AC power (kVA) | 5.00 |
| Max. short circuit current per MPPT (A) | 20\/20 |
| Max. generator power DC (kWp) | 7.50 |
| Shadow management | yes |
| Hazardous goods transportation category | 2 |
|---|---|
| Hazardous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Manufacturer | SMA |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer item name | Home Storage 6.5*STP 5.0 Smart Energy |
| Hazardous goods Weight (net) (kg) | 76.000 |
| Hazardous goods class | 9 |
| Hazardous goods packaging type | 4G |
| Intrastat country of origin | South Korea |
| UN No. | 3480 |
| Warranty provider | SMA |
|---|
